Product Overview

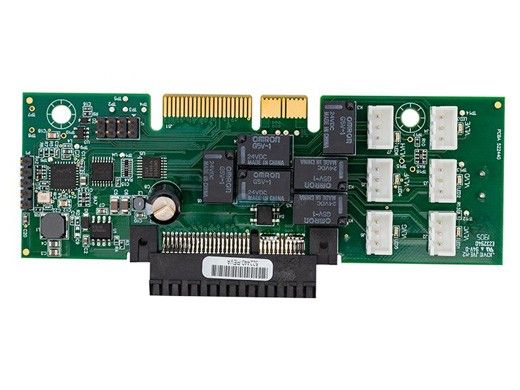

Pentair IntelliCenter® 522038Z Valve Expansion Module. The IntelliCenter Valve Expansion Module circuit board adds 6 actuator ports to system on main load center only. IntelliCenter is Pentair's highest-capacity and most service-friendly control system ever. Communication with this system can be done on a wide range of devices and platforms. Many important service, programming and monitoring tasks can be done without an on-location service call.

Used with all Pentair Intellicenter systems.

The Pentair 522038Z IntelliCenter Valve Expansion Module is a genuine Pentair circuit board that adds 6 valve actuator ports to an IntelliCenter control system. It installs in the main load center only and lets the system automate additional valves for features such as spillovers, water features, cleaner lines and pool/spa switching.

Ideal For

Pentair IntelliCenter systems that need more automated valves

Adding water features, spillovers or cleaner lines to an existing pad

Pool builders and service technicians expanding IntelliCenter installations

Key Features

Genuine Pentair OEM part: part number 522038Z.

Adds 6 valve actuator ports to the IntelliCenter system.

Main load center installation only.

Works with Pentair IntelliCenter control systems.

Specifications

Warranty & Compatibility

Compatibility Notes

This module is for Pentair IntelliCenter systems and installs in the main load center only; it is not used in IntelliCenter expansion load centers. It is not compatible with EasyTouch or IntelliTouch systems.

Installation Notes

Turn off all power to the load center before installation. Valve actuators are connected to the module's ports and assigned in the IntelliCenter configuration. Installation by a qualified pool professional or electrician is recommended.

Customer-Facing Q&A

Q: What is the part number and UPC?
A: Pentair 522038Z, UPC 788379883560.

Q: How many valves can this add?
A: It adds 6 valve actuator ports.

Q: Can I install it in an expansion load center?
A: No. It is installed in the main IntelliCenter load center only.

Q: Will it work with EasyTouch or IntelliTouch?
A: No. It is designed for Pentair IntelliCenter control systems.
