Product Overview
The Pentair MagicStream® Laminar 580001G is an illuminated water-feature system designed to create a smooth, glass-like arc of water from the pool deck or surrounding landscape into a pool or spa.
This configuration includes a gray deck lid, integrated 12 VAC LED lighting, and a 100-foot factory cord. Pentair’s laminar design removes turbulence and air bubbles before the water exits the nozzle, producing a clean, continuous stream rather than a conventional spray.
Key Features
- Genuine Pentair MagicStream® Laminar
- Manufacturer Part Number: 580001G
- Gray deck lid
- 100-foot electrical cord
- 12 VAC low-voltage LED operation
- Approximately 16W
- Creates a smooth, clear laminar water arc
- 5 fixed colors
- 7 programmed light shows
- Can hold a single color or cycle through lighting effects
- Compatible with IntelliBrite® 5G lighting
- Compatible with optional Color Sync™ Controller
- Works with select IntelliCenter®, EasyTouch®, and IntelliTouch® automation
- Flush deck installation
- Adjustable stream height and direction
- Low-flow design allows multiple laminars on one pool
- Ships fully assembled and ready for installation
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Product Line | MagicStream® Laminar |
| Part Number | 580001G |
| Product Type | Illuminated Laminar Water Feature |
| Lid Color | Gray |
| Lighting | Integrated Color LED |
| Voltage | 12 VAC |
| Power Consumption | 16W |
| Cord Length | 100 ft |
| Installation | Flush Deck / Landscape |
| Flow Requirement | Approx. 6–7.5 GPM |
| Inlet Pressure | Approx. 2.5–3.5 PSI |
| Typical Jet Height | Approx. 5–6 ft |
| Carton Weight | 21 lb |
| Transformer Included | No |
| OEM | Yes |
Pentair specifically lists 580001G as the gray-lid MagicStream Laminar with a 100-foot cord and 21 lb carton weight.

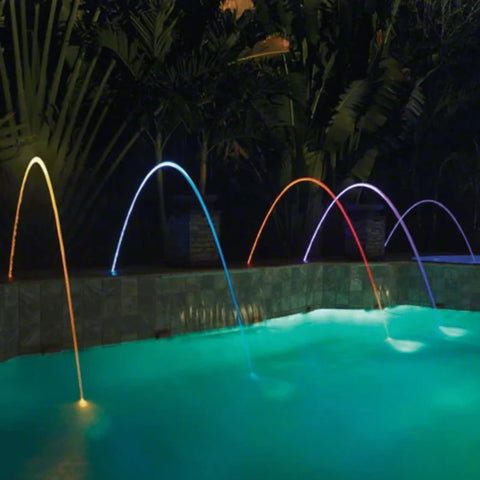

Smooth Laminar Water Effect
Unlike a conventional deck jet, MagicStream conditions the water internally before it exits the nozzle. By reducing turbulence and air bubbles, the stream maintains surface tension and travels through the air as a clean, unbroken arc.
This creates a more refined water feature during the day and a dramatic illuminated effect at night.
Integrated Color LED Lighting
The built-in LED system provides:
- 5 fixed colors
- 7 light shows
- Single-color hold
- Automatic color-changing effects
- Synchronization with compatible Pentair color lighting
MagicStream is designed to complement IntelliBrite 5G LED pool lighting, allowing multiple pool lights and laminars to operate together as part of a coordinated lighting display.
Adjustable Water Arc
Pentair allows the laminar stream to be adjusted after installation.
Approximate adjustment range:
- Vertical: 62°–75°
- Left / Right: Up to 60° total
This gives the installer flexibility to position the stream so it lands exactly where desired in the pool or spa.
Performance
Pentair publishes the following approximate performance:
| Flow Rate | Inlet Pressure | Jet Height |
|---|---|---|
| 6.0 GPM | 2.5 PSI | 5 ft |
| 7.5 GPM | 3.5 PSI | 6 ft |
Actual height and distance depend on available flow, pressure, plumbing configuration, and nozzle adjustment.

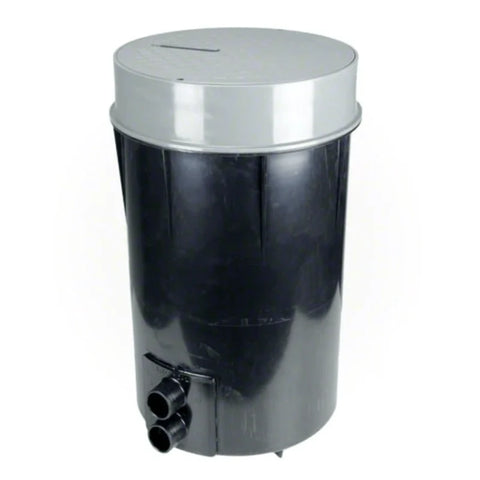

Gray Deck Lid
The 580001G includes a gray deck cover, making it a good match for:
- Gray concrete decks
- Pavers
- Stone finishes
- Modern pool designs
- Gray coping or surrounding hardscape
Pentair also offers tan and black lid configurations.
Transformer Requirements
A transformer is not included.
Pentair specifies connection to an appropriate pool-rated low-voltage transformer.
Common Pentair options include:
| Part Number | Description |
|---|---|
| 619962 | 12V–14V, 100W Transformer |
| 619963 | 12V–14V, 300W Transformer |
Transformer sizing should account for all lighting connected to the circuit.
Replacement Parts
Common MagicStream replacement parts include:
| Part Number | Description |
|---|---|

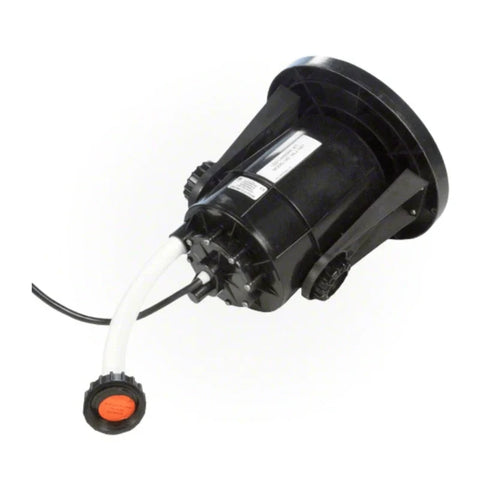

| 590021 | LED Light Engine with Laminar Body, 100' Cord |

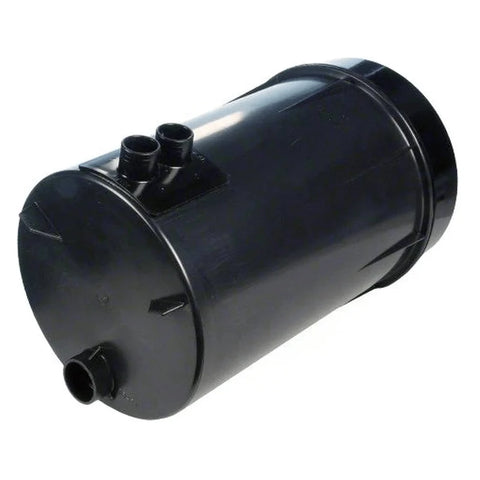

| 590024 | Laminar Housing, No Cover |
| 590026 | Gray Laminar Cover with Collar |
| 590028 | Laminar Screen Kit |
| 590029 | Union Nut Kit |
| 590030 | Bracket Kit |
| 590032 | Orifice Kit |
| 590100 | Water Line Union Kit |
Pentair currently lists 590026 as the replacement gray cover with collar.
Frequently Asked Questions
What is Pentair 580001G?
It is the MagicStream LED Laminar with a gray lid and 100-foot cord.
Is it 12V?
Yes. The LED lighting operates at 12 VAC.
How much power does it use?
Approximately 16 watts.
Does it include a transformer?
No. A compatible transformer is required separately.
How long is the cord?
100 feet.
What color is the lid?
Gray.
Can it synchronize with Pentair pool lights?
Yes. It is designed to coordinate with compatible IntelliBrite 5G LED pool lights.
Can it work with Pentair automation?
Yes. Pentair lists MagicStream Laminars as compatible with select IntelliCenter, EasyTouch, and IntelliTouch systems when properly configured.
Is there a longer gray version?
Yes. Pentair 580040 is the gray-lid version with a 150-foot cord.
