Product Overview

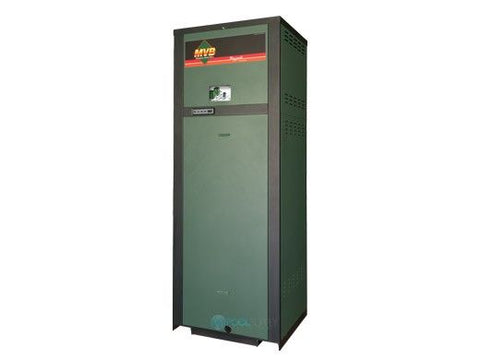

The Raypak MVB natural gas vertical pool heater provides substantial heating capacity for commercial pools and spas while keeping equipment-room space requirements manageable. With a rated input of 1,045,000 BTU/hr, this H-bypass configuration combines a cupro-nickel heat exchanger, bronze headers, and commercial controls in a compact upright cabinet. It is a practical option for professionally designed heating installations at hotels, community pools, and aquatic facilities where heating demand, equipment access, and ongoing serviceability matter.

Ideal For

• Hotels, resorts, and community pools requiring commercial heating capacity.
• Aquatic facilities replacing an existing heater after a system compatibility review.
• Equipment-room projects where a compact vertical arrangement helps preserve floor space.

Key Features

• Natural gas operation with 1,045,000 BTU/hr rated input.
• Cupro-nickel finned heat exchanger tubing and bronze headers.
• Standard external H-bypass configuration with an associated bronze circulation pump.
• Low-NOx combustion design.

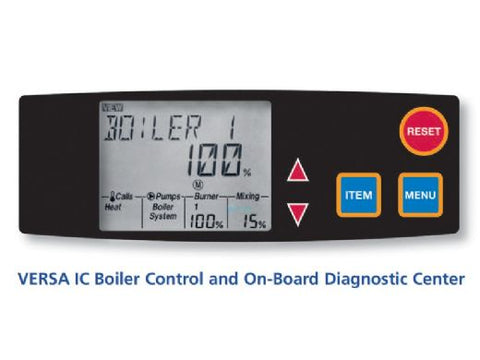

• Touchscreen controls for equipment operation and status information.

Benefits

• Provides heating capacity for demanding applications when properly sized for the pool.
• Vertical construction helps accommodate equipment rooms with limited floor area.
• Commercial heat exchanger materials support pool-heating service when water chemistry and flow remain within manufacturer requirements.
• The dedicated bypass arrangement supports management of heater-loop conditions during operation.

Compatibility

This configuration uses natural gas and is intended for commercial pool and spa heating. Confirm available gas pressure and supply capacity, electrical requirements, circulation flow, and venting before ordering.

Select the heater using a heat-loss calculation that considers surface area, climate, target temperature, operating schedule, and pool-cover use. An existing heater with a similar BTU rating does not establish direct replacement compatibility.

Indoor and outdoor installations require the appropriate equipment arrangement and accessories. Allow space beyond the cabinet footprint for bypass piping, connections, ventilation, and maintenance access.

Installation and Commissioning

Installation should be completed by a qualified commercial pool-heating professional. Proper bypass adjustment, combustion setup, water-flow verification, and vent installation are essential to dependable operation.

The installer should review the current Raypak instructions and the supplied unit’s rating plate before commissioning. Maintain water chemistry within Raypak’s specified limits; cupro-nickel construction does not eliminate the need for proper pool-water management.

What’s Included

• Raypak MVB natural gas commercial pool heater.
• Standard external H-bypass configuration.
• Associated bronze circulation pump.

Confirm delivery configuration and field assembly requirements before installation. Vent termination components and other job-specific accessories may require separate purchase.

Specifications

Customer Q&A

Is the BTU figure the input or heating output?
It is the fuel input rating. Heat transferred to the water is lower.

Does the included pump replace the pool’s filtration pump?
No. The heater circulation arrangement serves the heating system. The pool requires its own properly designed circulation system.

Can this replace my existing commercial heater?
Possibly, after checking heating demand, utilities, plumbing, venting, and clearances.

Is the shipping weight sufficient for a freight quote?
Confirm the actual packed weight and pallet dimensions with the shipping warehouse before booking transportation.
