Product Overview
The Raypak 010062F Copper Tube Bundle Kit is a genuine OEM replacement heat exchanger component designed for compatible Raypak 406A and 407A Digital Low NOx pool and spa heaters equipped with polymer heat exchanger headers.

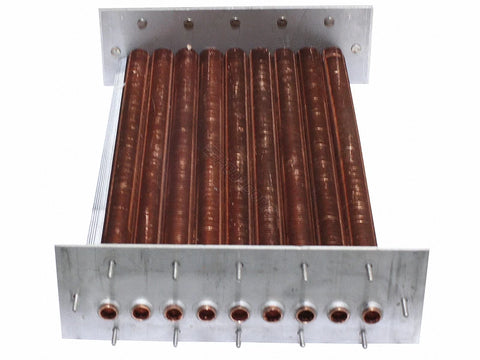

The tube bundle is the primary heat-transfer component inside the heater, carrying circulating pool water through copper tubing while heat from the burner transfers into the water. Replacement may be required when the existing bundle develops leaks, severe scale buildup, corrosion, restricted flow, or other heat exchanger damage.

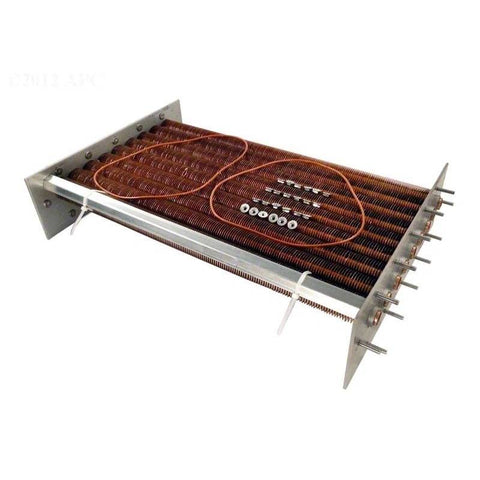

This OEM kit includes the copper tube bundle, baffle, flange nut kit, and two O-ring gaskets required for the applicable polymer-header configuration.
Key Features
Genuine Raypak OEM Replacement
Manufactured to Raypak specifications for proper fit and operation with compatible 406A and 407A heater configurations.
Copper Tube Bundle
Uses copper tubing for efficient heat transfer between the heater combustion system and circulating pool or spa water.
For Polymer Header Heat Exchangers
Specifically designed for compatible Raypak heaters utilizing the polymer heat exchanger/header configuration.
406A & 407A Compatibility
Designed for compatible:
- Raypak 406A Digital Pool & Spa Heaters
- Raypak 407A Digital Low NOx Pool & Spa Heaters
Complete Service Kit
Includes key installation components to simplify replacement of the existing tube bundle.
Benefits
- Genuine Raypak OEM heater component
- Restores heater heat-transfer capability
- Copper tube construction
- Designed for polymer-header configurations
- Fits compatible 406A heaters
- Fits compatible 407A Digital Low NOx heaters
- Helps correct leaking or deteriorated heat exchangers
- Includes replacement sealing components
- Designed for professional pool-heater repair
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raypak |
| Manufacturer Part Number | 010062F |
| Product Type | Heat Exchanger Tube Bundle Kit |
| Tube Material | Copper |
| Header Application | Polymer Heat Exchanger |
| Compatible Model | Raypak 406A |
| Compatible Model | Raypak 407A Digital Low NOx |
| Application | Pool & Spa Heater |
| OEM / Aftermarket | Genuine Raypak OEM |
| Product Weight | Approx. 38.6 lb |
| Shipping Dimensions | Approx. 18" x 7" x 27.5" |
| SKU | 010062F |
| UPC / Barcode | 840891019961 |
What's Included
- Copper heat exchanger tube bundle
- Baffle
- Flange nut kit
- Two O-ring gaskets
Important: This kit is intended for the polymer-header heat exchanger configuration. Do not assume polymer headers themselves are included unless specifically stated by the supplier.
Installation Information
Replacement of a pool-heater tube bundle requires significant heater disassembly and should be performed by a qualified pool-heater professional.
Before servicing:
- Shut off electrical power
- Shut off the gas supply
- Allow the heater to cool completely
- Shut off circulating water
- Relieve system pressure
During installation, mating surfaces and polymer headers should be inspected for cracking, warping, deterioration, or other damage before the new tube bundle is installed.
Confirm Before Ordering
Compatibility must be confirmed before purchase.
Verify:
- Raypak part number 010062F
- Heater model
- Heater serial number
- 406A or 407A configuration
- Polymer-header heat exchanger
- Copper tube bundle requirement
Raypak heaters may use different heat exchanger configurations depending on model, production revision, header construction, ASME configuration, and tube material.
Do not order this part based only on heater BTU size.
Warranty Information
This is a genuine Raypak OEM replacement component. Warranty coverage is subject to Raypak's applicable replacement-part warranty terms, proper installation, operating conditions, maintenance, and water chemistry.
Heat exchanger failures caused by improper water chemistry, scale, corrosion, insufficient flow, improper bypass operation, or installation conditions may not qualify for warranty coverage.
Customer Q&A
Q: What heaters does Raypak 010062F fit?
It is designed for compatible Raypak 406A and 407A Digital Low NOx heaters using the polymer-header heat exchanger configuration.
Q: Is the tube bundle copper?
Yes. The 010062F uses copper heat exchanger tubing.
Q: Does this kit include the gaskets?
Yes. The kit includes two O-ring gaskets along with the baffle and flange nut kit.
Q: Are polymer headers included?
The 010062F is specified as a copper tube bundle kit for the polymer heat exchanger/header configuration. Polymer headers should not be assumed to be included unless specifically listed separately with the product.
Q: What are common reasons for replacing a tube bundle?
Common reasons include water leaks, pinhole leaks, severe scale buildup, corrosion, restricted internal flow, freeze damage, or deterioration of the existing heat exchanger.
Q: Is this an OEM Raypak part?
Yes. Part 010062F is a genuine Raypak replacement tube bundle kit.
