Product Overview

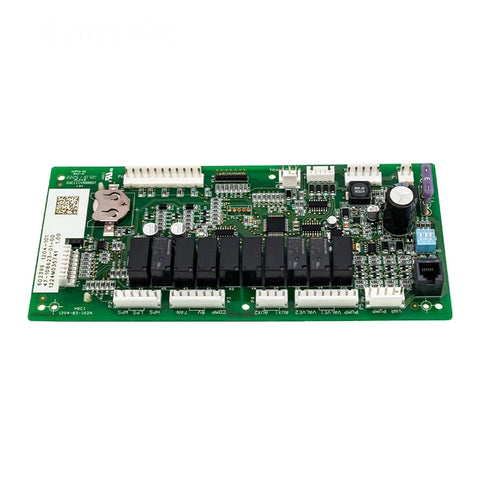

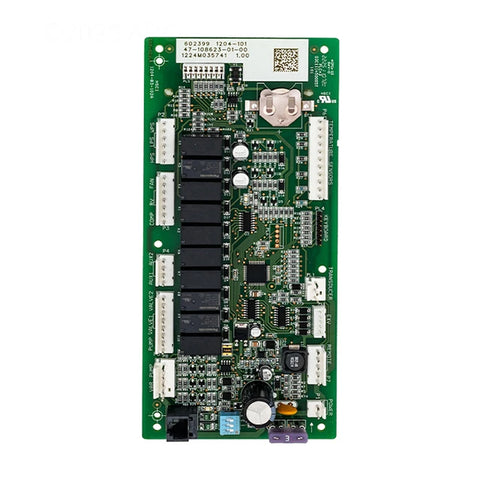

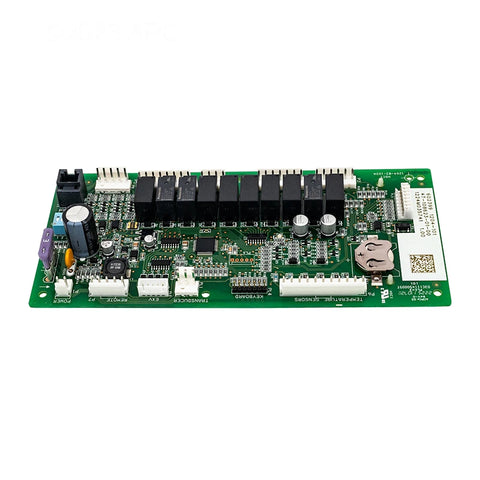

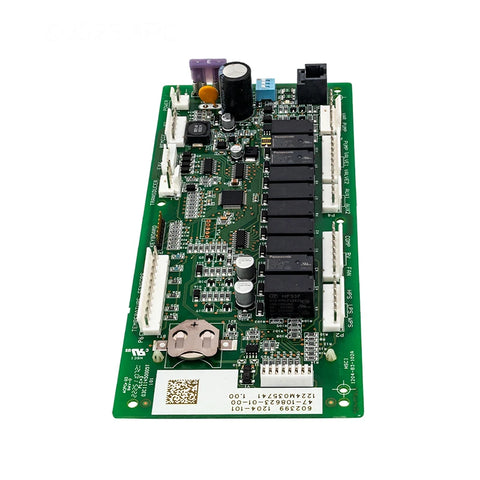

The Raypak 100-10000347 Heat Pump Digital Control Board Kit is a genuine OEM replacement electronic control assembly designed for compatible Raypak heat pump pool and spa heaters.
This updated digital PC board manages the heat pump's operating controls, temperature settings, system inputs, equipment communication, and diagnostic functions. The replacement version incorporates the LCD display directly into the control board and includes the mounting hardware and LCD window gasket required for proper installation.
The 100-10000347 is also the current Raypak replacement for older digital control board H000302.
Key Features
Genuine Raypak OEM Replacement
Factory-authorized digital PC board kit manufactured specifically for compatible Raypak heat pump pool heaters.
Integrated LCD Display
Updated control-board design incorporates the LCD display directly into the PC board assembly.
Complete Installation Kit
Includes the digital PC board, LCD window gasket, mounting screws, standoffs, cup washers, and retaining washers.
Heat Pump Control Functions
Supports compatible temperature control, Pool/Spa modes, equipment operation, system inputs, and onboard diagnostic functions.
Updated Replacement for H000302
Raypak identifies 100-10000347 as the current replacement for the previous H000302 digital board.
Benefits
- Genuine Raypak OEM replacement component
- Restores heat pump digital-control operation
- Integrated LCD display
- Includes required installation hardware
- Supports onboard heater diagnostics
- Replaces discontinued H000302 control board
- Compatible with multiple Raypak heat pump generations
- Allows control-system repair without replacing the complete heat pump
Specifications
| Specification | Details |
|---|---|
| Brand | Raypak |
| Product Type | Heat Pump Digital Control Board Kit |
| Manufacturer Part Number / SKU | 100-10000347 |
| UPC / Barcode | 840328444823 |
| Previous Part Number | H000302 |
| Control Type | Digital PC Board |
| LCD Display | Integrated |
| Primary Catalog Compatibility | 9350, 9353, 5450-8450 |
| Additional Raypak Compatibility | 2450, 3450, 4450, 10353, 10354, 10355 |
| Application | Pool & Spa Heat Pump |
| Product Weight | 1 lb |
| Shipping Dimensions | 5 x 5 x 5 in. |
| Minimum Sell Quantity | 1 |
| Warranty | Subject to Current Raypak Replacement-Part Warranty Terms |
Kit Includes
- 1 Digital PC Board
- 4 Plastic Cup Washers
- 4 Mounting Screws – 1/4" #6
- 1 LCD Window Gasket
- 2 Mounting Screws – 3/8" #6
- 2 PC Board Standoffs – 1/4"
- 4 Retainer Washers
Installation Information
Electrical power to the heat pump must be completely disconnected at the breaker before servicing the control system. The unit should also be allowed to shut down completely before access panels are removed.
During replacement, the existing wiring connectors are transferred to the new control board. Inspect the wiring harnesses, connectors, communication cable, temperature sensors, pressure-switch wiring, and surrounding electrical components for corrosion or damage.
Raypak specifies that all components supplied in the replacement kit should be installed. Installation should be performed by a qualified heat-pump or pool-equipment service professional.
Confirm Before Ordering
Raypak 100-10000347 is documented for compatible models including:
- 2450
- 3450
- 4450
- 5450
- 6450
- 8450
- 9350
- 9353
- 10353
- 10354
- 10355
Pool360 commonly catalogs the board as “9350/9353 5450-8450.” Raypak's factory replacement instructions list the additional models shown above.
Always confirm the heat pump model, serial number, and existing control-board part number before ordering.
Warranty Information
The 100-10000347 is a genuine Raypak factory-authorized replacement component. Warranty eligibility and duration are subject to Raypak's current replacement-part warranty terms, purchase documentation, installation, and applicable exclusions.
Customer Q&A
Q: Does the 100-10000347 include the LCD display?
Yes. The updated control board incorporates the LCD display into the board assembly.
Q: What older control board does it replace?
Raypak identifies 100-10000347 as the replacement for H000302.
Q: Does the kit include installation hardware?
Yes. It includes the PC board, LCD window gasket, screws, standoffs, cup washers, and retaining washers.
Q: Is this only for 9350 and 9353 heat pumps?
No. Raypak's factory instructions also list compatible 2450, 3450, 4450, 5450, 6450, 8450, 10353, 10354, and 10355 models.
Q: Is this the complete heat pump control panel?
This is the digital PC board replacement kit. Other sensors, wiring harnesses, contactors, transformers, and heat pump components are separate unless specifically stated.
