Product Overview

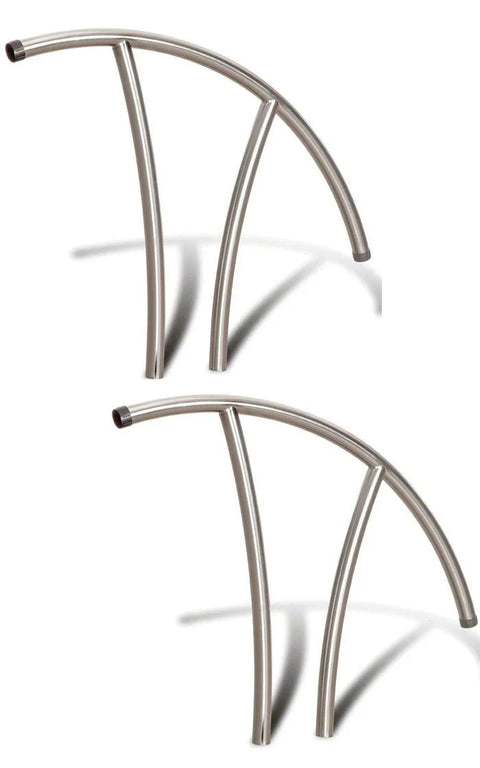

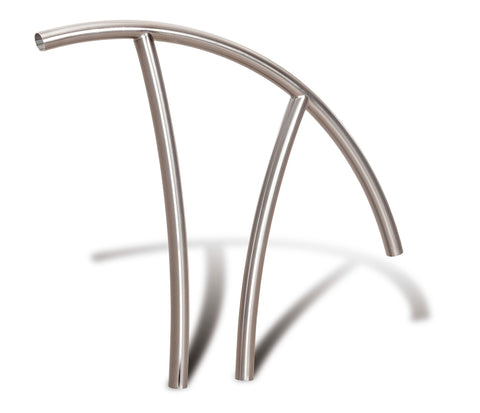

Upgrade the appearance and accessibility of your swimming pool with the S.R. Smith Artisan Series Deck Rail Pair | ART-1001. Designed to combine dependable hand support with a modern architectural appearance, the Artisan Series gives residential pool decks a distinctive designer-inspired alternative to traditional Figure 4-style handrails.

The ART-1001 includes a pair of matching deck rails manufactured from durable 1.90-inch outside-diameter stainless-steel tubing with a .065-inch wall thickness. Its flowing contemporary shape provides a comfortable handhold while creating a cleaner, more upscale appearance around the pool.

One of the biggest advantages of the Artisan ART-1001 is its suitability for pool renovation and retrofit projects. S.R. Smith specifically designed the Artisan hand rail to retrofit many existing Figure 4 handrail installations, potentially allowing homeowners and contractors to modernize an existing pool without completely redesigning the deck layout.

The standard ART-1001 is manufactured from 304 stainless steel. For saltwater environments, S.R. Smith offers a separate 316L Marine Grade configuration, identified by adding -MG to the part number.

Key Features

• Genuine S.R. Smith Artisan Series
• Manufacturer Part Number: ART-1001
• Includes two matching deck hand rails
• Designer-inspired modern appearance
• Ideal for residential pool renovations
• Designed to retrofit compatible Figure 4 rail installations
• 1.90" outside-diameter tubing
• .065" wall thickness
• Standard construction: 304 stainless steel
• Optional 316L Marine Grade version available separately
• Compatible with S.R. Smith 1.90" deck anchors
• Powder-coated finishes may be available by special order
• Durable poolside construction
• Professional deck installation recommended

Product Specifications

Ideal for Pool Renovations

Traditional Figure 4 rails are installed on thousands of residential swimming pools. The Artisan Series provides an easy way to update the visual appearance of many of these installations while maintaining functional hand support.

Its sculpted design creates a more contemporary look that pairs well with modern tile, stone, pavers, concrete decking, and renovated outdoor living spaces.

Existing anchor dimensions should always be measured and verified before ordering.

Anchors & Escutcheons

The ART-1001 rails are sold separately from the deck anchors and decorative escutcheons.

S.R. Smith recommends compatible:

• AS-100P Universal Plastic Anchors
• AS-100B Bronze Anchors
• EP-100F Round Escutcheons

These components should be ordered separately when they are not already installed at the pool.

Saltwater Pool Applications

The standard ART-1001 uses 304 stainless steel.

For a pool equipped with a salt chlorine generator, S.R. Smith specifies 316L Marine Grade stainless steel as the minimum requirement. The Marine Grade rail is identified with an -MG suffix and should be selected instead of the standard ART-1001 when required for a saltwater environment.

Frequently Asked Questions

Does ART-1001 include one rail or two?

ART-1001 includes a pair of two matching rails. ART-1001S is the single-rail version.

What is the tubing size?

The Artisan rail uses 1.90" outside-diameter tubing with a .065" wall thickness.

Are deck anchors included?

No. Compatible deck anchors are sold separately.

Are escutcheons included?

No. S.R. Smith recommends the EP-100F escutcheon, which is sold separately.

Can ART-1001 replace existing Figure 4 rails?

The Artisan ART-1001 was specifically designed as a retrofit option for compatible Figure 4 handrail installations. Existing anchor spacing and dimensions should be verified before ordering.

Can ART-1001 be used with a saltwater pool?

For salt pools, S.R. Smith specifies the 316L Marine Grade version as the minimum requirement. Do not assume the standard 304 stainless ART-1001 is the appropriate salt-pool configuration.
