Product Overview

The S.R.Smith aXs2 Pool Lift Without Anchor | 310-0000N is a low-profile, ADA-compliant aquatic access lift designed for community pools, hotels, resorts, apartment communities, recreation centers, and other commercial swimming pool applications.

Engineered for accessibility, safety, and ease of operation, the aXs2 features a 300 lb lifting capacity, full 360° rotation, integrated armrests, a generous rotomolded seat, and S.R.Smith’s LiftOperator® Intelligent Control System.

The lift is powered by a 24V rechargeable battery and can be operated through either the water-resistant handset or the controls located on the LiftOperator control box.

This specific 310-0000N configuration is supplied WITHOUT the deck anchor, making it ideal for facilities that already have the correct S.R.Smith LiftLock2 anchor installed or intend to purchase and install the anchor separately.

Important – Anchor Not Included

This model does NOT include the pool-deck anchor.

The current compatible S.R.Smith locking anchor for this configuration is:

LiftLock2 Locking Lift Anchor | 300-6600L – Sold Separately

The lift cannot be placed into service until a compatible anchor is properly installed in the pool deck.

Ideal For

• Hotels and resorts
• Community swimming pools
• Apartment and condominium pools
• HOA pools
• Recreation centers
• Municipal swimming pools
• Schools and universities
• Rehabilitation facilities
• Commercial aquatic centers
• Facilities upgrading an existing S.R.Smith lift installation

Key Features & Benefits

• ADA-Compliant Pool Lift – Third-party tested and verified for compliance with applicable ADA pool-lift requirements.
• 300 lb Lifting Capacity – Accommodates users weighing up to 300 lbs / 136 kg.
• 360° Rotation – Provides excellent transfer flexibility and allows the seat to rotate completely around the lift mast.
• Compact Low-Profile Design – Requires less deck space than many larger pool lifts.
• LiftOperator® Intelligent Controller – Provides reliable powered lifting and rotation.
• 24V Rechargeable Battery – Cordless operation eliminates the need for a power cord at the pool edge.
• Water-Resistant Hand Control – Allows the user or attendant to operate the lift conveniently.
• Control-Box Operation – Full lift operation is also available from the main control system.
• Integrated Armrests – Provides additional rider stability and comfort.
• Rotomolded Seat – Durable seating designed specifically for aquatic environments.
• Footrest Included – Provides additional rider support.
• Seat Belt Included – Helps secure the rider during transfer.
• Powder-Coated Stainless Steel & Aluminum Construction – Designed for long-term aquatic-facility use.
• Gray Mist Finish – Standard finish for part number 310-0000N.

Specifications

What's Included

The 310-0000N package includes the primary lift components required for operation, including:

• S.R.Smith aXs2 lift assembly
• LiftOperator® Intelligent Controller
• 24V rechargeable battery
• Battery charger
• Battery console cover
• Water-resistant hand control
• Rotomolded seat
• Integrated armrests
• Standard footrest
• Seat belt assembly

Not Included

• LiftLock2 deck anchor
• Portable caddy
• Optional covers
• Spare battery
• Other optional accessories

360° Rotation

The aXs2 offers full 360-degree powered rotation, allowing the seat to rotate around the lift mast for easier positioning and transfer.

This can be especially helpful where deck layouts require flexibility when moving a user between a wheelchair, deck, and swimming pool.

The lift provides powered movement through both the handset and the main control box.

LiftOperator® Intelligent Control System

The S.R.Smith LiftOperator system manages both lifting and rotational movement.

The system uses a rechargeable 24V battery and allows the user or attendant to operate the lift without requiring a direct electrical connection at the pool edge.

The system is designed to provide controlled movement throughout the transfer cycle.

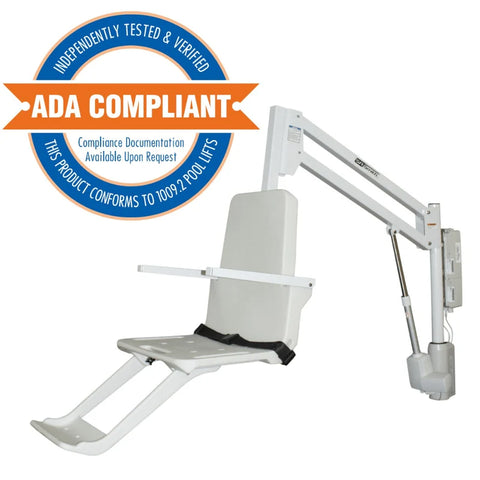

ADA Pool Accessibility

S.R.Smith states that the aXs2 is independently tested and verified by a third party to comply with ADA pool-lift requirements.

For a complete compliant installation, facilities must also verify:

• Pool water depth
• Deck clearances
• Anchor location
• Seat-transfer position
• Clear deck space
• Pool-edge geometry
• Accessible approach route

Purchasing an ADA-compliant lift alone does not automatically make every installation ADA compliant.

LiftLock2 Anchor – Sold Separately

The current S.R.Smith anchor for the standard aXs2 is:

S.R.Smith LiftLock2 Locking Lift Anchor | 300-6600L

The LiftLock2 is made from 316L stainless steel and incorporates a locking system that secures the pool lift to the deck.

It includes:

• 316L stainless steel anchor body
• Stainless steel cap
• Cap-removal tool
• Mounting hardware
• Bonding connection

The LiftLock2 anchor is not included with 310-0000N.

310-0000N vs. Other aXs2 Configurations

310-0000N

Gray Mist aXs2 – No Anchor

310-0000R

Gray Mist aXs2 Round Post – No Anchor

Designed for a compatible existing 2.38" inside-diameter × 6" deep round anchor.

310-0000CN

aXs2 with Caddy – No Anchor

Includes the portable caddy configuration while leaving the anchor out of the package.

Make sure the correct configuration is selected before ordering.

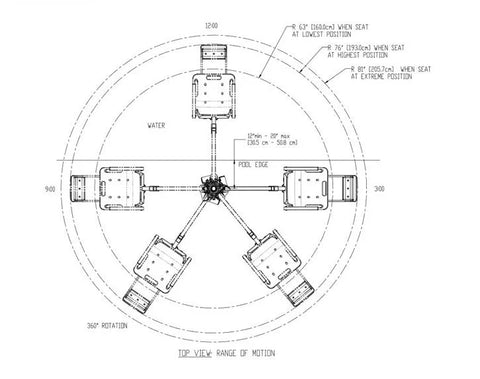

Pool-Deck Placement

S.R.Smith specifies that the anchor should generally be located approximately:

12" minimum to 20" maximum from the pool edge, depending on the installation geometry.

The complete pool profile should be reviewed before the anchor is installed.

Anchor placement directly affects:

• Seat positioning
• Transfer height
• Rotation
• Water entry
• ADA compliance

Professional installation is strongly recommended.

Installation Guidance

The LiftLock2 anchor should be installed into a structurally adequate pool deck by a qualified contractor or pool professional familiar with accessibility equipment.

Before ordering or installation, verify:

• Pool-edge profile
• Deck thickness
• Concrete condition
• Pool water depth
• Anchor location
• Required clear deck space
• Seat-transfer position
• Local accessibility requirements

Do not install the anchor based solely on approximate measurements.

Frequently Asked Questions

Does 310-0000N include the anchor?
No. 310-0000N is specifically the aXs2 without an anchor.

Which anchor do I need?
For the standard 310-0000N configuration, S.R.Smith currently lists the LiftLock2 300-6600L locking anchor.

What is the maximum weight capacity?
The aXs2 is rated for 300 lbs / 136 kg.

Does the lift rotate?
Yes. It provides 360° rotation.

Is the lift battery powered?
Yes. It uses a 24V rechargeable battery system.

Are the battery and charger included?
Yes. Both are included with the lift.

Does it include armrests and a footrest?
Yes. Integrated armrests, standard footrest, and seat belt are included.

What color is 310-0000N?
Gray Mist.

Is this ADA compliant?
S.R.Smith states that the aXs2 has been third-party tested and verified as ADA compliant. The complete installation must also meet applicable ADA and local accessibility requirements.
