Product Overview

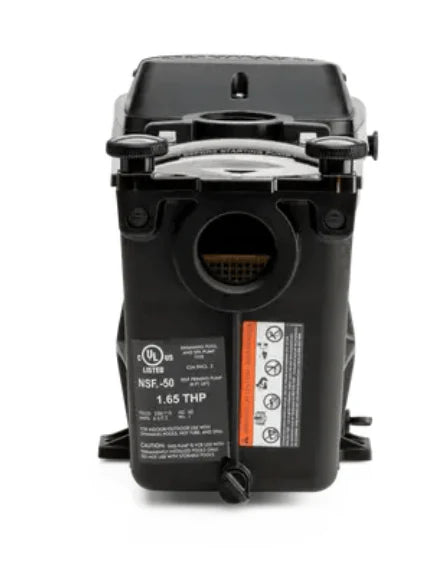

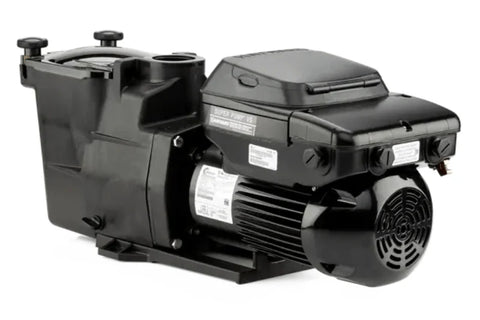

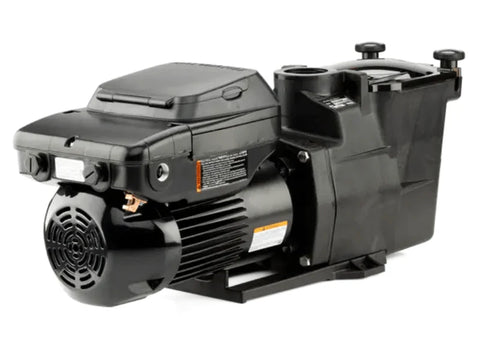

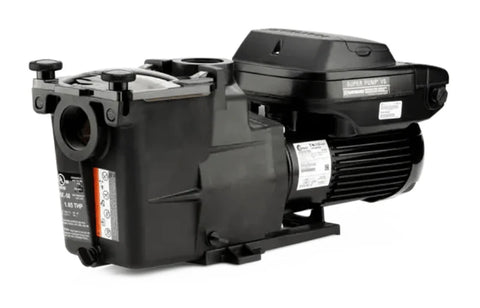

The Hayward Super Pump VS W3SP2603VSP is a 1.65 total-horsepower variable-speed pump designed for residential in-ground swimming pools. Built on the familiar Super Pump platform, it provides an efficient replacement option for many older single-speed Super Pump installations while maintaining a compact footprint and straightforward service access.
The variable-speed motor allows the pump to operate at lower speeds for routine filtration and higher speeds when additional flow is needed for heating, cleaning, spa circulation, or water features. Running at reduced speeds can significantly lower energy consumption compared with operating a single-speed pump continuously at full power.
This model operates on 230V single-phase electrical service and features a permanent-magnet, totally enclosed fan-cooled motor. The enclosed motor design helps protect internal components from moisture, dirt, and debris commonly found around pool equipment pads.

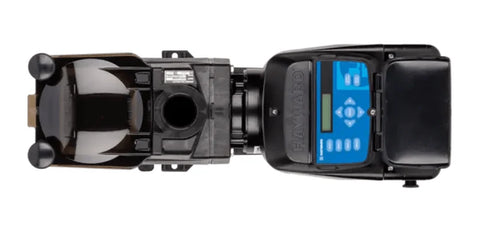

The integrated digital controller allows users to program operating speeds and schedules directly at the pump. This listing includes the complete pump with motor, drive, strainer housing, basket, lid, and wet end. External automation systems, relays, communication accessories, and plumbing materials are not included.
Key Features
- Genuine Hayward Super Pump VS
- 1.65 total-horsepower rating
- Variable-speed operation
- Designed for residential in-ground pools
- 230V single-phase electrical requirement
- Permanent-magnet TEFC motor
- Integrated digital speed controller
- Programmable operating schedules
- Large debris basket
- Clear strainer lid
- Tool-free swing-away lid knobs
- Chemical-resistant Viton shaft seal
- Energy-efficient DOE-compliant design
- Compact replacement footprint
Benefits
The ability to adjust motor speed allows the Super Pump VS to match the flow requirements of different pool functions. Lower speeds are ideal for daily filtration, while higher speeds can be programmed for heaters, suction cleaners, water features, or spa operation.
Reducing pump speed can lower energy use, decrease plumbing noise, and reduce pressure on filters and other pool equipment. The variable-speed design also allows longer filtration cycles at reduced flow, which may improve water circulation and sanitizer distribution.
The Super Pump housing provides easy access to the oversized strainer basket. Its clear lid allows the basket condition to be checked without opening the pump, while the swing-away hand knobs simplify routine maintenance.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Hayward |
| Product Line | Super Pump VS |
| Manufacturer Part Number | W3SP2603VSP |
| Product Type | Variable-Speed Pool Pump |
| Application | Residential In-Ground Pools |
| Total Horsepower | 1.65 HP |
| Voltage | 230V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Motor Type | Permanent-Magnet TEFC |
| Speed Control | Integrated Digital Drive |
| Programmable Schedules | Yes |
| Strainer Basket Included | Yes |
| Clear Lid Included | Yes |
| Shaft Seal | Chemical-Resistant Viton |
| Automation Compatible | Select External Controls |
| DOE Compliant | Yes |
Installation Information
Install the pump on a stable, level equipment pad with sufficient ventilation and drainage. The suction plumbing should be airtight and properly sized for the required flow.
This pump requires a dedicated 230V electrical circuit, proper overcurrent protection, grounding, and bonding. Electrical work must comply with applicable local and national codes.
Fill the pump housing with water before startup. Never operate the pump dry, as dry operation can damage the mechanical shaft seal and internal components.
Installation by a qualified pool professional or licensed electrician is recommended.
Confirm Before Ordering
Verify the following:
- Your pool requires a 1.65 HP variable-speed pump.
- Your electrical supply is 230V single phase.
- Your existing plumbing matches the Super Pump configuration.
- Your filter, heater, and plumbing can support the programmed flow.
- You require model W3SP2603VSP.
- You are purchasing a complete pump rather than a replacement motor or drive.
- Any external automation system is compatible with this pump.
Warranty Information
The Hayward Super Pump VS is covered by the applicable manufacturer’s limited warranty when purchased and installed according to Hayward requirements. Warranty duration may vary based on sales channel, installation method, and model designation.
Warranty coverage does not include improper voltage, dry operation, freeze damage, restricted plumbing, chemical damage, incorrect installation, unauthorized modification, or failures caused by incompatible equipment.
Customer Q&A
Is this a single-speed pump?
No. It is a variable-speed pump with programmable operating speeds and schedules.
Can it operate on 115V?
No. The W3SP2603VSP is designed for 230V electrical service. Hayward also offers newer dual-voltage Super Pump VS configurations under different model numbers.
Can it replace an older Hayward Super Pump?
It is designed as a convenient replacement for many existing Super Pump installations, but plumbing dimensions, voltage, and hydraulic requirements should be verified.
Does it include the digital controller?
Yes. The variable-speed drive and onboard controller are included with the complete pump.
