Jandy JXi & JXiQ Pool and Spa Heaters

The Jandy JXi is one of the most compact high-output gas pool heaters available, and the JXiQ builds on it with the VersaFlo integrated bypass. Pool Supply Depot carries JXi and JXiQ heaters in natural gas and propane, with copper or cupronickel heat exchangers and ASME models for commercial use, plus genuine Jandy JXi replacement parts. Order online with nationwide shipping or pick up at our Henderson, NV store.

Read more

JXi & JXiQ models at a glance

Size Natural gas Propane
200K BTU JXiQ 200 NG (JXiQ200NK) –
260K BTU JXiQ 260 NG (JXiQ260NK) JXiQ 260 LP (JXiQ260PK)

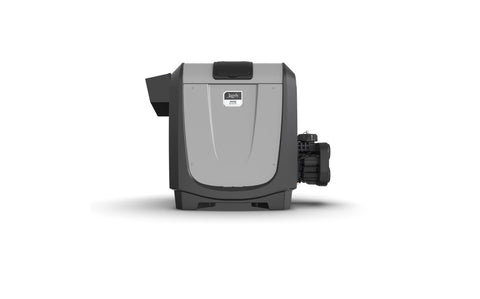

400K BTU – JXiQ JXiQ 400 NG (JXiQ400NK) · JXiQ 400 NG with poly header (JXiQ400NNK) JXiQ 400 LP (JXiQ400PK)
400K BTU – JXi JXi 400 NG copper (JXi400N) · JXi 400 NG cupronickel (JXi400NN) JXi 400 LP Low-NOx (JXi400P)
400K BTU – ASME JXiQ ASME 400 NG (JXiQ400NC) · JXiQ ASME 400 NG cupronickel (JXiQ400NS) –

JXi vs. JXiQ

Both heaters share Jandy's compact, high-efficiency JXi design. The JXiQ adds the VersaFlo integrated bypass, a built-in bypass valve that regulates how much water flows through the heater, which helps on equipment pads running variable speed pumps. If you are replacing an existing JXi, match the size, fuel type and exchanger of your current unit.

Copper or cupronickel?

Copper heat exchangers suit most residential pools with well-balanced water. Cupronickel exchangers add corrosion resistance for salt pools and water that is harder to keep balanced. ASME models are certified for commercial pools and code-required installs.

Sizing your heater

The quick formula is gallons × 8.34 × temperature rise (°F) ÷ hours to heat = BTU per hour. Most pool/spa combinations are fitted with a 400K BTU heater for fast spa heat-up, while 200K and 260K models suit smaller pools and spas. See our pool heater BTU sizing guide and our 400K BTU heater comparison of Jandy, Pentair, Hayward and Raypak.

JXi replacement parts

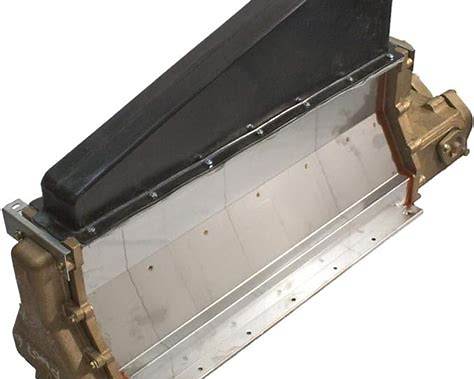

This collection also includes genuine JXi heat exchangers, gas valves, sensors, bypass kits and intake adapters. Confirm the exact heater model, fuel type and exchanger configuration on your rating plate before ordering; send us a photo and we will match it. More parts are in Jandy heater parts, and our pool heater replacement guide helps if it's time for a new unit.

Jandy heaters in Las Vegas & Henderson

Pick up your JXi or JXiQ at Pool Supply Depot, 121 Industrial Park Rd, Suite 109, Henderson, NV, with same-day pickup on in-stock items, or order online with nationwide shipping. Call 725-205-1783. Shop all Jandy pool heaters.

JXi FAQ

Is the JXi 399K or 400K BTU?
Jandy lists some JXi 400 models at 399,000 BTU. Both are the same 400-size heater class. When replacing, match the fuel type and heat exchanger of your current unit, and send us your model number if you want us to confirm.

Can I convert a JXi from natural gas to propane?
Natural gas and propane are separate models. Order the fuel type that matches the gas supply at your equipment pad.

Do JXi heaters work with AquaLink?
Yes, JXi and JXiQ heaters work with Jandy AquaLink automation for remote heater control.
