Product Overview

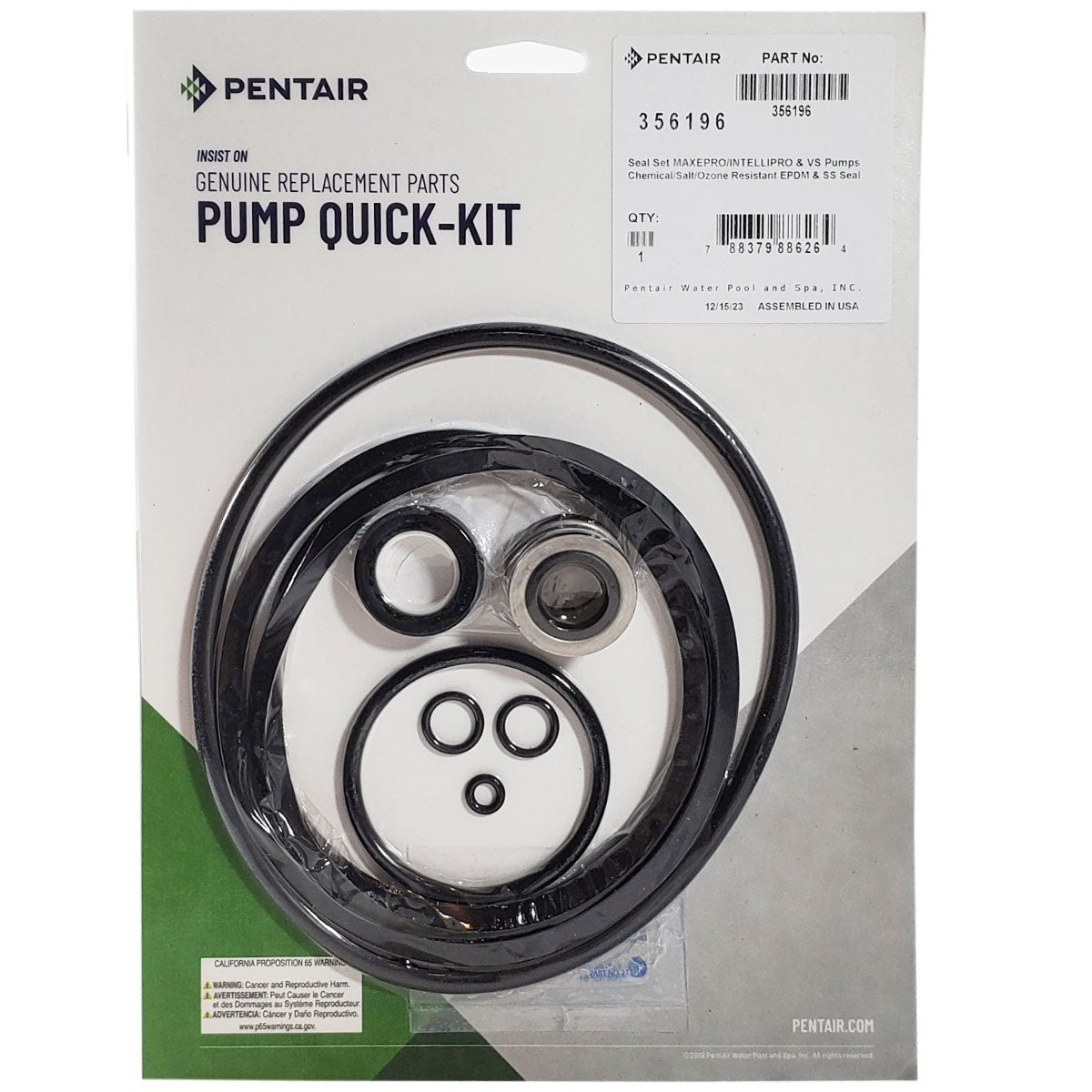

The Pentair 356196 Seal Kit is a genuine Pentair chemical-, salt- and ozone-resistant seal set for Pentair IntelliPro and Max-E-Pro pumps. It bundles the shaft seal and the common O-rings and gaskets replaced during a seal service, so the pump can be resealed in one job.

Ideal For

Repairing a leaking shaft seal on an IntelliPro or Max-E-Pro pump

Routine reseal during motor or wet-end service

Salt-chlorinated or ozone-treated pools

Key Features

Genuine Pentair kit: part number 356196.

Chemical, salt and ozone resistant: shaft seal.

Complete reseal set: shaft seal plus diffuser O-ring, seal plate gasket, lid O-ring, drain plug O-rings and impeller screw washer.

Specifications

Kit Includes

1. Shaft Seal Assembly (salt/ozone resistant): P/N 17351-0101S- 1A(Ceramic Seal), 1B(Spring Seal)
2. Impeller Screw Washer: P/N 35505-1426
3. Diffuser O-Ring: P/N U9-374Z
4. Seal Plate Gasket: P/N 357099Z
5. Strainer Pot Lid O-Ring: 35505-1440
6. Drain Plug O-Rings(Quantity 2): P/N U9-359

Warranty & Compatibility

Compatibility Notes

For Pentair IntelliPro and Max-E-Pro pumps. Confirm your pump model and the part numbers of the existing seal and O-rings against the pump's parts list before ordering.

Installation Notes

Turn off and lock out power to the pump and relieve system pressure before servicing. Replace both halves of the shaft seal together and avoid touching the seal faces. Lubricate O-rings only with a silicone-based lubricant, and check for leaks after restarting the pump.

Customer-Facing Q&A

Q: What is the part number?
A: Pentair part number 356196.

Q: What is the UPC?
A: 788379886264.

Q: Which pumps does it fit?
A: Pentair IntelliPro and Max-E-Pro pumps.

Q: Is the seal suitable for a saltwater pool?
A: Yes. It is a chemical-, salt- and ozone-resistant seal set.
