Product Overview

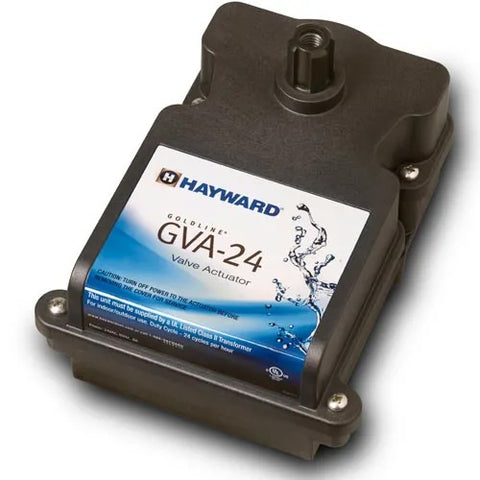

The Hayward Goldline GVA-24 Pool/Spa Diverter Valve Actuator is a 24V motorized actuator designed to automate compatible pool and spa diverter valves. It rotates 2-port and 3-port valves automatically, helping control pool/spa mode changes, solar heating, water features, cleaner lines, and other automated plumbing functions.

The GVA-24 is designed for use with Hayward automation platforms such as Aqua Logic, Pro Logic, and the GL-235 Solar Controller, and Hayward states that its industry-standard configuration is compatible with major manufacturers’ valves and pool automation systems. It includes easy cam adjustments for precise control of valve rotation.

This actuator is commonly listed with 24V, 0.75A, and a 15 ft cable, making it a practical replacement or upgrade actuator for automated pool and spa plumbing systems.

Ideal For

• Pool and spa mode automation
• Pool/spa suction valve automation
• Pool/spa return valve automation
• Solar heating valve control
• Water feature valve control
• Cleaner line valve control
• Replacing failed 24V valve actuators
• Hayward Aqua Logic systems
• Hayward Pro Logic systems
• Hayward GL-235 solar controller systems
• Compatible major-brand automation systems
• Compatible 2-port and 3-port diverter valves

Key Features

• 24V actuator operation — designed for compatible low-voltage pool automation systems.
• 0.75A current rating — common electrical rating for the GVA-24 actuator.

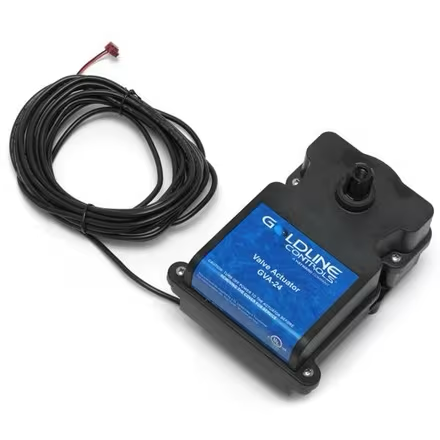

• 15 ft cable — provides flexible routing to compatible automation panels.
• Automates 2-port and 3-port valves — rotates compatible diverter valves automatically.
• Adjustable internal cams — allows precise setting of valve stop positions.
• Manual ON1/OFF/ON2 switch — allows manual actuator direction selection and service control.
• Industry-standard configuration — compatible with many major pool valves and automation systems.
• Pool/spa automation ready — ideal for switching between pool and spa circulation modes.
• Solar control compatible — commonly used with the Hayward GL-235 solar controller.
• Water feature and cleaner compatible — useful for automating fountains, waterfalls, cleaner lines, and auxiliary plumbing circuits.
• Replacement actuator solution — restores automated valve movement when an existing actuator fails.
• Professional-grade pool control component — designed for pool equipment pad automation applications.

Benefits

The Hayward Goldline GVA-24 helps automate water flow control throughout a pool and spa system. Instead of manually turning diverter valves, the actuator connects to compatible automation controls and rotates valves based on programmed operation.

This is especially helpful for pool/spa systems where suction and return valves need to switch between pool mode and spa mode. It is also useful for solar heating, water features, cleaners, and other plumbing circuits where automated flow control is needed.

For pool professionals, the GVA-24 is a widely used 24V actuator with adjustable cams, a familiar three-position switch, and broad compatibility with major pool automation and valve systems.

Specifications

Included Components

• 1 × Hayward Goldline GVA-24 24V valve actuator
• Attached 15 ft cable
• Mounting hardware, where supplied by manufacturer packaging
• Manufacturer-supplied installation documentation

Diverter valve body, automation controller, solar controller, transformer, conduit, electrical wiring beyond included cable, plumbing valves, valve seals, and installation labor are sold separately unless specifically included by the supplier.

Compatibility Notes

The Hayward GVA-24 is designed for compatible 2-port and 3-port pool/spa diverter valves and compatible 24V automation systems.

Common application references include:

• Hayward Aqua Logic automation systems
• Hayward Pro Logic automation systems
• Hayward GL-235 solar controllers
• Compatible Hayward pool/spa automation systems
• Compatible 24VAC valve actuator control systems
• Major-brand pool valves using industry-standard actuator mounting
• Pool/spa suction and return valves
• Solar heating valves
• Cleaner valves
• Water feature valves

Always confirm valve style, actuator mounting pattern, voltage, automation output, cam settings, and cable routing before ordering. Valve body is not included.

Installation Notes

This actuator should be installed by a qualified pool professional. Pool automation wiring and valve setup must follow manufacturer instructions and applicable electrical code requirements.

Before installation, turn off power to the automation system. Mount the actuator to the compatible diverter valve, connect the actuator cable to the correct 24V valve output, and set the cams to control the desired valve rotation range.

After installation, test valve movement in both directions, confirm the ON1/OFF/ON2 switch operation, verify pool/spa or auxiliary function programming, and check that plumbing flow matches the intended system mode.

Customer-Facing Q&A

Q: What is the Hayward GVA-24?
A: It is a 24V motorized valve actuator used to automate compatible pool and spa diverter valves.

Q: What is the SKU?
A: The SKU is GVA-24.

Q: What is the UPC / barcode?
A: The UPC / barcode is 761418002139.

Q: What voltage does it use?
A: The GVA-24 uses 24VAC.

Q: What is the amperage rating?
A: It is commonly listed at 0.75A.

Q: How long is the cable?
A: This actuator is commonly listed with a 15 ft cable.

Q: Does this fit 2-port and 3-port valves?
A: Yes. The GVA-24 is designed to rotate compatible 2-port and 3-port valves.

Q: Does this include the valve body?
A: No. This listing is for the actuator only.

Q: What systems can it be used with?
A: It is commonly used with Hayward Aqua Logic, Pro Logic, GL-235 Solar Controller, and compatible 24V pool automation systems.

Q: Can this be used for pool/spa switching?
A: Yes. It is commonly used to automate pool/spa suction and return valves.

Q: Can it control solar or water features?
A: Yes. It can be used for compatible solar heating, cleaner, water feature, and auxiliary valve applications.

Q: Should this be professionally installed?
A: Yes. Professional installation is recommended to ensure correct wiring, mounting, cam adjustment, and automation setup.
