Product Overview

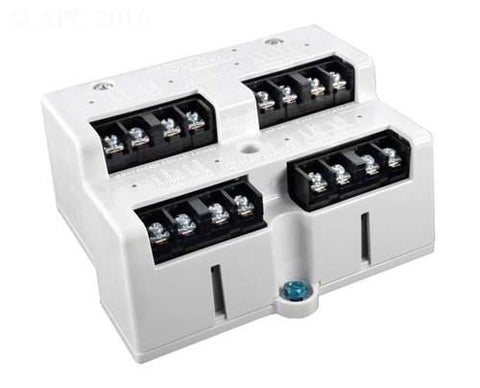

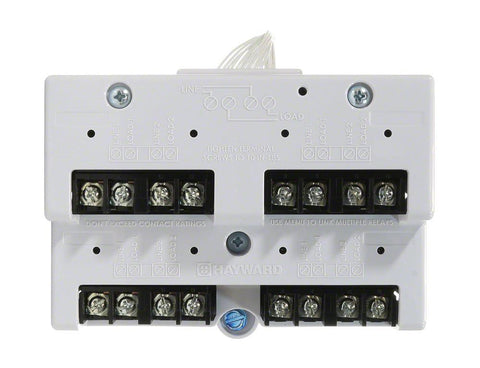

The Hayward OmniLogic 4 Relay Module | HLRELAYBANK is a genuine Hayward automation expansion accessory designed to add more control capability to compatible Hayward OmniLogic pool and spa automation systems. This relay bank adds four additional high-voltage internal relays, allowing the OmniLogic system to control more pool and backyard equipment from the automation interface.

Designed for use with OmniLogic pool controls, the HLRELAYBANK is a practical solution for pool owners and service professionals who need to automate additional equipment such as lights, pumps, water features, cleaners, or other compatible on/off devices. Once installed, the OmniLogic system can automatically detect the relay bank and allow the new relays to be configured through the system’s configuration wizard.

Ideal For

The Hayward HLRELAYBANK 4 Relay Module is ideal for:

Expanding compatible Hayward OmniLogic automation systems
Adding control for up to four additional high-voltage circuits
Pool and spa automation upgrades
Pool lights, pumps, cleaners, water features, and backyard equipment
Residential inground pool and spa systems
Pool professionals expanding existing OmniLogic panels
Customers needing more equipment control without replacing the full automation system

Key Features

Genuine Hayward Automation Accessory

The HLRELAYBANK is a genuine Hayward relay bank module designed for compatible OmniLogic pool controls, helping ensure proper fit, communication, and system integration.

Adds Four High-Voltage Relays

This module adds four additional high-voltage internal relays to the OmniLogic system, giving users expanded control over multiple compatible pool and backyard equipment circuits.

Designed for OmniLogic Pool Controls

The HLRELAYBANK is made for Hayward OmniLogic automation systems and is designed to integrate inside the existing OmniLogic control panel.

Automatic System Detection

After installation and power-up, the OmniLogic system can automatically detect the HLRELAYBANK module, helping simplify setup and configuration.

Configuration Wizard Setup

The added relays can be assigned and configured through the OmniLogic configuration wizard, allowing users to control additional pool and backyard equipment from the automation system.

Supports Multiple Equipment Types

This relay bank can be used to control compatible on/off devices such as pool lights, pumps, water features, cleaners, spa equipment, and other high-voltage circuits.

Internal Panel Installation

The module installs inside the OmniLogic panel beneath the dead front and connects to the main board, keeping the expansion relays integrated within the automation enclosure.

Professional Expansion Solution

Because installation involves high-voltage wiring and access inside the automation panel, the HLRELAYBANK is best installed by a qualified pool professional or electrician.

Benefits

The Hayward OmniLogic HLRELAYBANK helps expand an existing OmniLogic automation system by adding four additional high-voltage relay circuits. This allows pool owners to automate more equipment and create a more complete pool and backyard control experience without replacing the full automation system.

For pool professionals, this module provides a clean and reliable way to expand OmniLogic control capacity. Automatic detection and configuration wizard setup help streamline the installation process once the relay bank is properly mounted and wired.

Specifications

Customer-Facing Q&A

What is the Hayward HLRELAYBANK used for?

The Hayward HLRELAYBANK is used to add four additional high-voltage relays to a compatible Hayward OmniLogic automation system. This allows the system to control more pool and backyard equipment.

Is this compatible with Hayward OmniLogic?

Yes. The HLRELAYBANK is designed for Hayward OmniLogic pool controls.

How many relays does this module add?

This module adds four high-voltage internal relays to the OmniLogic system.

What can these relays control?

The relays can control compatible on/off pool and backyard equipment such as pool lights, pumps, water features, cleaners, spa equipment, and other high-voltage circuits.

Does the OmniLogic system detect this module automatically?

Yes. After proper installation and power-up, the OmniLogic system can automatically discover the HLRELAYBANK and display the added relays in the configuration wizard.

Where do the relays appear in the OmniLogic system?

The added relays are typically displayed as HVR5 through HVR8 in the OmniLogic relay table.

Where does the HLRELAYBANK install?

The HLRELAYBANK installs inside the OmniLogic panel beneath the dead front and connects to the main board.

Is professional installation recommended?

Yes. Installation involves access inside the automation panel and high-voltage wiring. A qualified pool professional or electrician should install this module.
