Product Overview

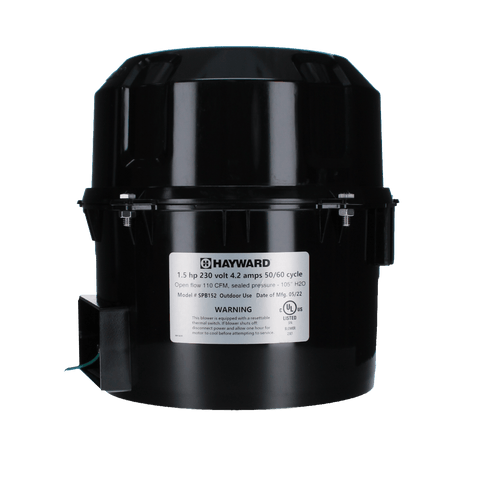

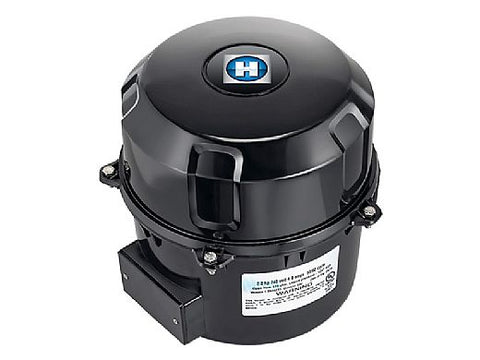

The Hayward SPB152 Spa Blower delivers powerful, consistent airflow for residential and commercial spa systems. Featuring a 1.5 HP motor and a 230V electrical configuration, this blower introduces air into the spa plumbing to create stronger bubbling, improved water movement, and an enhanced hydrotherapy experience.

Hayward’s unique rubber motor base helps reduce vibration and operating noise for quieter performance. The durable motor features thermal protection and replaceable brushes to support reliable, long-lasting operation. A full spring check valve helps prevent water from reaching the blower motor, while the included mounting bracket allows for a secure and straightforward installation.

Key Features

• Genuine Hayward spa air blower
• 1.5 HP motor
• 230V electrical configuration
• Designed for residential and commercial spa applications
• Unique rubber motor base reduces vibration and operating noise

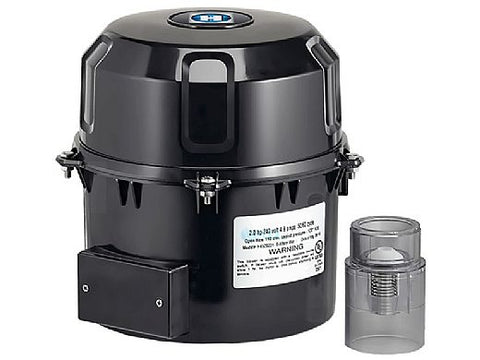

• Full spring check valve helps prevent water intrusion
• Thermal switch protects the motor from overheating
• Replaceable motor brushes help extend service life
• High-impact housing for indoor or outdoor installations
• Included mounting bracket simplifies installation
• Designed for quiet, dependable performance
• Suitable for new installations and replacement applications

Benefits

• Creates stronger spa bubbling and aeration
• Enhances hydrotherapy and water movement
• Supports larger spa systems with multiple jets
• Quiet motor mounting reduces equipment noise
• Built-in check valve helps protect the blower motor
• Thermal protection supports dependable operation
• Serviceable motor components help extend product life
• Durable construction withstands demanding spa environments

Specifications

Recommended Spa Sizing

Under standard installation conditions, the Hayward SPB152 is generally suitable for approximately 8 to 12 water jets.

Actual blower performance and sizing depend on several factors, including:

• Number and size of spa jets
• Water depth
• Length of the air supply line
• Number of plumbing elbows and fittings
• Pipe diameter
• Air-hole configuration
• Distance between the blower and spa
• Total system back pressure

The blower should be sized according to the complete plumbing system rather than horsepower alone. A system with long plumbing runs, numerous fittings, or greater water depth may require a larger blower.

Installation Information

The Hayward SPB152 should be installed and serviced by a qualified pool or spa professional.

Important installation requirements include:

• Confirm that the electrical supply matches the blower’s 230V nameplate rating.
• Follow all applicable local electrical codes and National Electrical Code requirements.
• Use properly sized copper electrical conductors.
• Install GFCI protection where required.
• Install the blower in a dry, well-ventilated location.
• Maintain adequate airflow around the motor to prevent overheating.
• Install the blower at least 2 feet above ground level.
• Position the blower at least 5 feet horizontally from the spa water.
• Install the blower at least 1 foot above the spa’s maximum water level.
• Use nonmetallic plumbing between the blower and spa.
• Use a 2-inch supply line from the blower toward the spa.
• Protect the blower from sprinklers, chemicals, debris, flooding, and standing water.
• Install the check valve vertically in an accessible location above the water level.
• Use a Hartford loop when required by the plumbing layout.
• Do not glue the blower directly to the supply pipe.

Professional installation is strongly recommended to ensure correct wiring, blower sizing, plumbing configuration, and water-backflow protection.

Confirm Before Ordering

Please verify the following before purchasing:

• Your required model number is SPB152
• Your spa system requires a 1.5 HP blower
• Your available electrical supply is 230V
• Your plumbing accepts a 2-inch slip connection
• The blower is properly sized for the number of jets and system back pressure
• Your installation location meets Hayward’s ventilation and clearance requirements
• Your existing blower is not a 115V model

Do not connect this 230V blower to a 115V electrical supply. Incorrect voltage can damage the motor and create a serious electrical hazard.

Warranty Information

The Hayward SPB152 is covered by Hayward’s limited manufacturer warranty against qualifying defects in materials and workmanship. Warranty coverage is subject to Hayward’s current terms, installation requirements, and proper use of the equipment.

Damage caused by incorrect voltage, improper wiring, water intrusion, inadequate ventilation, incorrect blower sizing, improper plumbing, or unauthorized repairs may not be covered.

Customer Q&A

Q: What voltage does the Hayward SPB152 require?
A: The SPB152 is designed for a 230V electrical supply.

Q: How many spa jets can this blower support?
A: Under standard installation conditions, a 1.5 HP blower is generally suitable for approximately 8 to 12 water jets. Actual requirements depend on the plumbing layout and system back pressure.

Q: What is the plumbing connection size?
A: The blower is designed for a 2-inch slip plumbing connection.

Q: Does the SPB152 include a check valve?
A: Yes. It includes a full spring check valve designed to help prevent water from reaching the blower motor.

Q: Is this blower designed for quiet operation?
A: Yes. Hayward uses a unique rubber motor base to reduce vibration and operating noise.

Q: Can the SPB152 be installed outdoors?
A: Yes, provided it is installed in a dry, well-ventilated location and protected from sprinklers, chemicals, debris, flooding, and water intrusion.

Q: Can this replace a 1 HP spa blower?
A: Possibly, but the voltage, plumbing configuration, number of jets, air-channel design, and total system back pressure must be verified before replacing the existing blower.

Q: Does it include a mounting bracket?
A: Yes. A mounting bracket is included to help secure the blower during installation.
