Product Overview

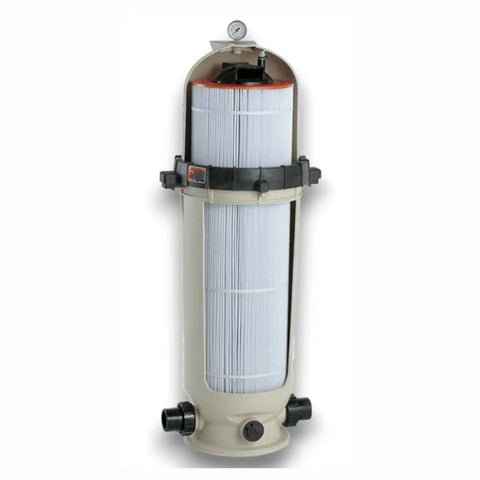

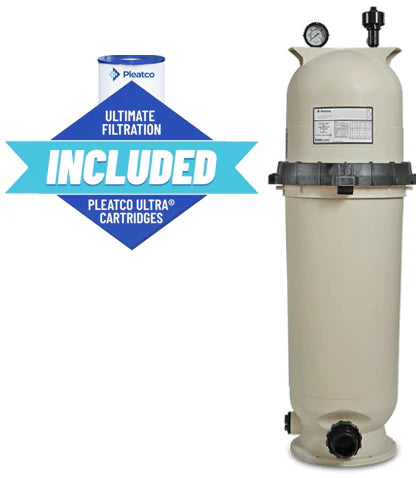

The Pentair Clean & Clear® 150 Cartridge Filter (160317) provides efficient, low-maintenance filtration for residential swimming pools and pool/spa combinations. Its single-cartridge design offers 150 square feet of effective filtration area and supports flow rates up to 150 GPM, providing high-capacity filtration in a compact equipment-pad footprint.

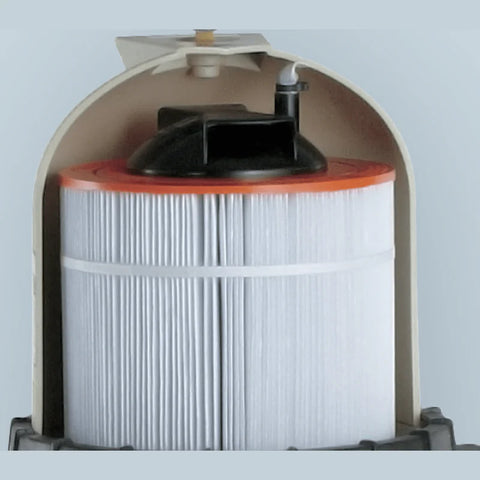

The Clean & Clear filter uses a durable, chemical-resistant tank designed for dependable outdoor service. Its pleated cartridge captures fine dirt and debris without requiring filter sand, D.E. powder or routine backwashing. When cleaning is required, the cartridge can be removed and rinsed with a standard garden hose.

Pentair’s locking-ring design provides convenient access to the filter element, while the High Flow™ manual air-relief valve and continuous internal air relief help safely release trapped air and support consistent circulation. Pentair identifies part number 160317 as the 150 sq. ft. Clean & Clear model.

Ideal For

Residential in-ground swimming pools

Large residential pools

Pool and spa combinations

New pool construction

Equipment-pad upgrades

Variable-speed pump systems

High-flow residential circulation systems

Installations where water conservation is important

Pool owners seeking simple cartridge maintenance

Key Features

150 sq. ft. effective filtration area

Maximum rated flow of approximately 150 GPM

Single-cartridge filtration design

Filter cartridge included

No backwashing required

Helps reduce water loss during routine maintenance

Chemical-resistant filter tank

Fiberglass-reinforced construction

Easy-access locking ring

High Flow™ manual air-relief valve

Continuous internal air-relief system

Cartridge removes easily for hose cleaning

Captures fine particles as small as approximately 20 microns

2-inch plumbing connections

Suitable for residential pools and pool/spa systems

Pentair states that Clean & Clear filters use a removable cartridge that can be cleaned with a hose and are designed to capture particles as small as approximately 20 microns.

Benefits

Provides high-capacity filtration without sand or D.E. powder

No backwashing reduces routine water waste

Large 150 sq. ft. cartridge supports longer cleaning intervals

Cartridge cleans with a standard garden hose

Compact tank diameter saves equipment-pad space

Locking ring provides convenient access to internal components

Chemical-resistant construction supports long outdoor service life

Included filter element reduces additional installation purchases

Compatible with many standard and variable-speed pool pumps

Specifications

Pentair’s current installation manual lists part number 160317 as the CC150 model and specifies approximately 76 inches of vertical clearance for installation and cartridge servicing. The Clean & Clear series has a maximum continuous operating pressure of 50 PSI and a maximum internal water temperature of 104°F.

What’s Included

• Pentair Clean & Clear CC150 filter tank
• 150 sq. ft. cartridge element
• Upper filter lid
• Locking ring
• High Flow™ manual air-relief valve
• Pressure gauge
• Internal air-relief assembly
• Drain cap and washout assembly
• Installation and operating documentation

Plumbing pipe, unions, valves and installation materials are not included unless specifically stated by the seller.

Warranty & Compatibility

Warranty Information

The Pentair Clean & Clear Cartridge Filter is covered by Pentair’s applicable manufacturer’s limited warranty when purchased, installed and operated according to current Pentair requirements.

Warranty eligibility may depend on the seller, installation method and installer qualifications. Damage caused by improper installation, excessive pressure, freezing, chemical misuse or operation outside Pentair’s published limits may not be covered.

Professional installation by a qualified pool professional is recommended.

Confirm Before Ordering

Please verify:

• The required model is Clean & Clear CC150
• The correct manufacturer part number is 160317
• A 150 sq. ft. filter is appropriate for the pool
• System flow does not exceed approximately 150 GPM
• Existing plumbing is compatible with 2-inch connections
• Approximately 76 inches of vertical clearance is available
• The equipment pad can accommodate the filter tank
• A single-cartridge filter is preferred
• The circulation pump is correctly sized for the system
• The filter cartridge is included with the unit

Installation Requirements

Install the filter on a stable, level equipment pad with sufficient space for plumbing and future servicing. The CC150 requires approximately 76 inches of total vertical clearance so the cartridge can be removed without obstruction.

The circulation pump and plumbing must be sized so the flow rate does not exceed the filter’s rated capacity or the rating of the lowest-rated system component.

The filter must not be operated above 50 PSI or with internal water temperatures exceeding 104°F.

Cartridge Maintenance

Clean the cartridge when the pressure gauge rises approximately 10 PSI above the recorded clean-filter pressure, or when pool circulation is noticeably reduced.

Recommended cleaning procedure:

1. Turn off power to the circulation pump.
2. Prevent the pump from restarting automatically.
3. Open the manual air-relief valve.
4. Confirm that the pressure gauge reads zero.
5. Remove the locking ring and upper filter section.
6. Lift out the cartridge element.
7. Rinse between the pleats using a garden hose.
8. Inspect the cartridge for tears, damaged pleats or cracked end caps.
9. Reinstall the cartridge and reassemble the filter.
10. Follow the proper startup and air-relief procedure.

Never loosen or remove the locking ring while the system is pressurized.
