Product Overview

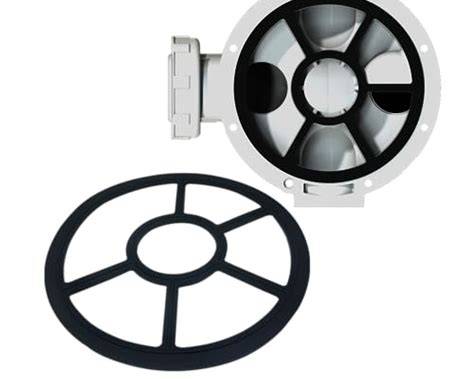

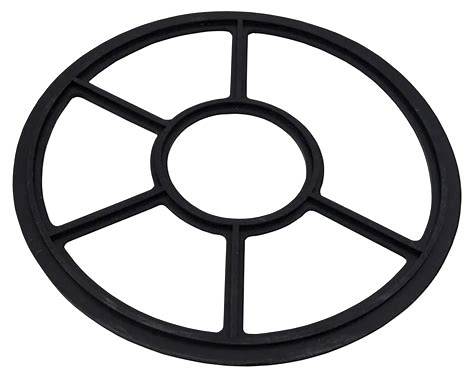

The Pentair 272409Z Diverter Seal is a genuine replacement sealing component designed for compatible Pentair HiFlow™ 2-inch side-mounted backwash valves.
Installed beneath the valve diverter, this seal helps maintain proper separation between the internal valve flow paths during filtration and backwash operation. A worn, torn, loose, or deteriorated diverter seal can cause water to bypass internally or leak toward the waste line.
Pentair lists this diverter seal for HiFlow 2" valve models 261049, 261050, and 261142.
Key Features
- Genuine Pentair OEM replacement part
- Manufacturer Part Number: 272409Z
- Also referenced by Pentair as 272409
- Replacement diverter seal
- Designed for Pentair 2" HiFlow valves
- Fits valve models 261049, 261050, and 261142
- Helps prevent internal water bypass
- Restores proper sealing between valve positions
- Ideal for servicing a leaking or worn backwash valve
- Seal only — diverter and valve body sold separately
Specifications
| Specification | Details |
|---|---|
| Brand | Pentair |
| Part Number | 272409Z |
| Alternate Reference | 272409 |
| Product Type | Diverter Seal |
| Valve Series | HiFlow™ |
| Valve Size | 2" |
| Compatible Valve Models | 261049, 261050, 261142 |
| Application | Filter / Backwash Valve |
| Quantity | 1 |
| OEM Replacement | Yes |
Pentair's current valve-parts catalog identifies 272409 as item 10, “Seal – Diverter,” in the 2" HiFlow valve assembly.
Compatibility
Designed for compatible Pentair:
- 261049 – HiFlow 2" Valve
- 261050 – HiFlow 2" Valve
- 261142 – HiFlow 2" Valve
These three valve assemblies are specifically identified by Pentair in the replacement-parts diagram containing the 272409 diverter seal.
What Does the Diverter Seal Do?
Inside the multi-position valve, the diverter directs water through the appropriate passages depending on the selected operating mode.
The 272409Z seal sits beneath the diverter and helps isolate those passages from one another.
When the seal becomes damaged, water may travel through a passage that should be closed, potentially resulting in:
- Water flowing from the waste line during normal filtration
- Internal valve bypass
- Reduced filtration performance
- Difficulty maintaining proper valve operation
- Leakage between valve positions
When Should It Be Replaced?
Consider replacing the diverter seal if you notice:
- Water continually coming from the backwash/waste line
- Torn or separated seal sections
- Flattened sealing surfaces
- Brittle or deteriorated rubber
- Seal lifting from the valve bottom
- Internal leakage after rebuilding the valve
- Valve has been disassembled for major service
Important Installation Information
Pentair specifically instructs that when replacing diverter gasket/seal 272409, it should be secured to the valve bottom using an instant cyanoacrylate adhesive suitable for bonding rubber to plastic.
Before service:
- Turn the circulation pump off.
- Relieve all filter pressure.
- Remove the valve top assembly.
- Remove the existing diverter and old seal.
- Completely clean the seal mounting surface.
- Position the new 272409Z seal correctly.
- Secure it using the appropriate adhesive specified by Pentair.
- Allow the adhesive to cure as directed.
- Reassemble the valve.
- Restore circulation and inspect operation.
Never move or disassemble a multiport/backwash valve while the filtration system is pressurized.
Related Pentair HiFlow Valve Parts
| Part Number | Description |
|---|---|
| 272409Z | Diverter Seal |
| 272413Z | Diverter |
| 272422 | Complete Valve Top Assembly |
| JV18 | O-Ring Kit |
| 272400Z | Compression Spring |
| 272412Z | Valve Top |
| 272520 | Handle |
| 272433 | 2" Valve Bottom with Gasket |
| 154566Z | 2" Clear Sight Glass |
Pentair notes that 272433, the complete 2" valve bottom with gasket, includes the 272409 diverter seal as part of that larger assembly.
Frequently Asked Questions
What does Pentair 272409Z fit?
It fits compatible Pentair 2" HiFlow valve models 261049, 261050, and 261142.
Is 272409Z the spider gasket?
It performs the same basic sealing function commonly associated with a multiport valve spider gasket. Pentair identifies this component specifically as the “Seal – Diverter.”
Is 272409 the same as 272409Z?
Pentair's current replacement-parts documentation shows the component as 272409, while distributor inventory may list the service replacement as 272409Z.
Does the diverter come with it?
No. The diverter is a separate component, 272413Z.
Is the complete valve top included?
No. The complete valve-top assembly is 272422.
Do I need adhesive to install this seal?
Yes. Pentair's service manual instructs that replacement seal 272409 be secured using a suitable instant cyanoacrylate adhesive for rubber-to-plastic bonding.
What could cause water to leak out of the waste line while filtering?
A worn or damaged diverter seal is one possible cause because it may allow water to bypass between internal valve passages.
