Product Overview

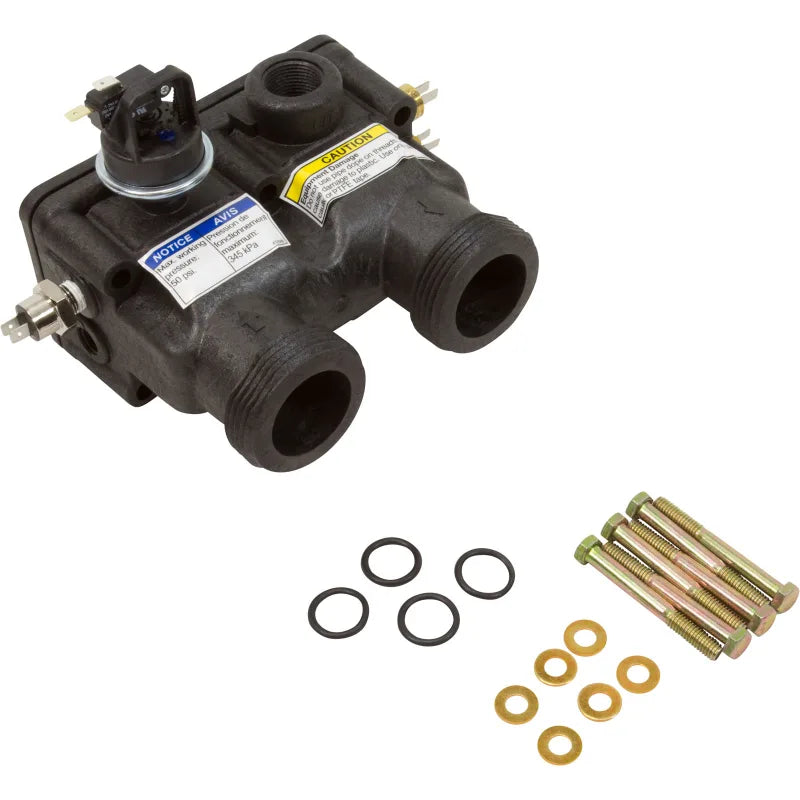

The Pentair MasterTemp 125 Manifold Kit | 474972 is a genuine Pentair replacement manifold assembly kit designed for compatible Pentair MasterTemp 125 pool and spa heaters. This kit is used to repair or replace a damaged, leaking, cracked, or worn manifold assembly and helps restore proper heater water flow, sealing, bypass function, and pressure-switch operation.
The manifold assembly is a critical part of the heater’s water system. It directs pool water through the heater, supports the bypass valve, seals against the heat exchanger, and provides the proper location for the water pressure switch. When the original manifold is damaged or the seals have failed, replacing the assembly with the correct OEM kit helps restore safe and reliable heater operation.
This kit is commonly listed for MasterTemp 125 heaters and includes major manifold service components such as the coil/tubesheet sealing O-ring kit, manifold bottom plate, manifold O-ring, baffle plate, bypass valve, water pressure switch, manifold, stainless steel washer, and hex cap screw. Public listings identify the UPC as 788379865245.
Ideal For
- Pentair MasterTemp 125 heater repairs
- Replacing cracked or leaking manifold assemblies
- Restoring proper heater water flow
- Replacing worn manifold seals and O-rings
- Heater bypass valve service
- Water pressure switch replacement during manifold repair
- Pool heater water-system rebuilds
- Natural gas or propane MasterTemp 125 heater service
- Professional pool heater technicians
- OEM Pentair heater part replacement
Key Features
- Genuine Pentair OEM replacement kit — designed for compatible MasterTemp 125 heater models.
- Complete manifold service kit — includes the manifold and key sealing/service components.
- Fits MasterTemp 125 heaters — made specifically for the Pentair 125K BTU MasterTemp platform.
- Includes coil/tubesheet sealing O-ring kit — helps seal the manifold to the heat exchanger assembly.
- Includes manifold O-ring and bottom plate — supports proper sealing and assembly alignment.
- Includes manifold baffle plate — helps maintain correct internal water direction.
- Includes bypass valve — restores proper internal flow bypass function.
- Includes water pressure switch — supports heater safety and flow verification.
- Includes washers and screws — provides key mounting hardware for the repair.
- Helps correct water leaks — ideal when the manifold body or seals are damaged.
- Restores heater serviceability — helps extend the life of the heater when the rest of the unit is in good condition.
- Professional repair part — recommended for trained pool heater service technicians.
Benefits
The Pentair 474972 manifold kit helps restore proper operation to compatible MasterTemp 125 heaters. A failing manifold can cause leaks, flow issues, pressure-switch problems, heater shutdowns, or improper bypass operation.
Using the correct OEM kit helps ensure proper fit, sealing, and compatibility with the MasterTemp 125 water system. Because the kit includes the manifold, O-rings, baffle plate, bypass valve, pressure switch, and hardware, it provides the main components needed for a thorough manifold service.
For pool professionals, this kit is a practical repair solution when the heater is otherwise serviceable and does not require full replacement.
Specifications
| Specification | Details |
|---|---|
| Product Name | Pentair MasterTemp 125 Manifold Kit |
| Brand | Pentair |
| Series Compatibility | MasterTemp 125 |
| Part Number | 474972 |
| SKU | 474972 |
| UPC / Barcode | 788379865245 |
| Product Type | Pool heater manifold assembly kit |
| Component Type | Heater water manifold / manifold service kit |
| Compatible Heater Type | Pentair MasterTemp 125 pool and spa heaters |
| Heater Size Compatibility | 125,000 BTU MasterTemp heaters |
| Fuel Compatibility | Compatible with supported natural gas and propane MasterTemp 125 models when verified by part diagram |
| Included Sealing Parts | Coil/tubesheet sealing O-ring kit, manifold O-ring |
| Included Internal Parts | Manifold bottom plate, manifold baffle plate, bypass valve |
| Included Safety Component | Water pressure switch |
| Included Hardware | 5/16" stainless steel washer and 5/16" x 18 x 2-3/4" hex cap screw references |
| Complete Heater Included | No |
| Heat Exchanger Included | No |
| Burner Assembly Included | No |
| Gas Valve Included | No |
| Control Board Included | No |
| Equipment Category | Pool heater replacement parts |
| OEM / Aftermarket | Genuine Pentair OEM replacement part |
| Professional Installation Recommended | Yes |
| Sold As | Kit |
Included Components
- 1 × manifold assembly
- 1 × coil/tubesheet sealing O-ring kit
- 1 × manifold bottom plate
- 1 × manifold O-ring
- 1 × manifold baffle plate
- 1 × manifold bypass valve
- 1 × water pressure switch
- Stainless steel washer and hex cap screw hardware, where supplied by manufacturer packaging
Complete heater, heat exchanger, burner tray, gas valve, control board, sensors not listed above, plumbing fittings, unions, additional gaskets, and installation labor are sold separately unless specifically included by the supplier.
Compatibility Notes
This manifold kit is designed for compatible Pentair MasterTemp 125 pool and spa heaters.
Common compatibility references include:
- Pentair MasterTemp 125 heaters
- MasterTemp 125,000 BTU natural gas models
- MasterTemp 125,000 BTU propane models
- Pentair model references 461058, 461059, 461060, and 461061, when verified by heater label and parts diagram
- Replacement applications requiring Pentair part 474972
Always confirm the heater model number, serial number, fuel type, manufacturing revision, water system diagram, and existing manifold part number before ordering.
Installation Notes
This manifold kit should be installed by a qualified pool heater technician. Pool heaters involve water, gas, electrical, combustion, pressure, and safety systems that must be serviced correctly.
Before installation, turn off power, gas supply, and pool circulation equipment. Allow the heater to cool fully and relieve system pressure before opening the water system.
During installation, inspect the heat exchanger sealing surface, bypass assembly, water pressure switch connection, O-rings, sensors, wiring, and plumbing unions. After installation, test for leaks, confirm proper water flow, verify pressure switch operation, and ensure the heater starts and runs safely.
Customer-Facing Q&A
Q: What is the Pentair 474972?
A: It is a genuine Pentair manifold assembly kit for compatible MasterTemp 125 pool and spa heaters.
Q: What is the SKU?
A: The SKU is 474972.
Q: What is the UPC / barcode?
A: The UPC / barcode is 788379865245.
Q: What heater does this fit?
A: This kit fits compatible Pentair MasterTemp 125 heaters.
Q: Is this for the 125K BTU MasterTemp heater?
A: Yes. This kit is designed for the MasterTemp 125 / 125,000 BTU heater platform.
Q: Does this work on both natural gas and propane MasterTemp 125 heaters?
A: It can be used on compatible MasterTemp 125 models when the heater parts diagram calls for part 474972. Always confirm by model and serial number.
Q: What is included in the kit?
A: Common kit contents include the manifold, coil/tubesheet sealing O-ring kit, manifold bottom plate, manifold O-ring, baffle plate, bypass valve, water pressure switch, washers, and screws.
Q: Is this a complete heater?
A: No. This is a replacement manifold kit only.
Q: Does this include the heat exchanger?
A: No. The heat exchanger is not included.
Q: Can this fix a leaking heater?
A: Yes, if the leak is coming from the manifold assembly or related manifold seals. A technician should inspect the heater to confirm the source of the leak.
Q: Should this be professionally installed?
A: Yes. Professional installation is strongly recommended because pool heaters involve gas, electrical, water flow, pressure, and safety components.
