Product Overview

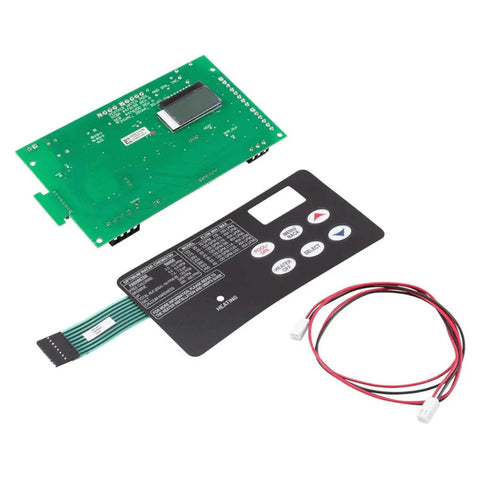

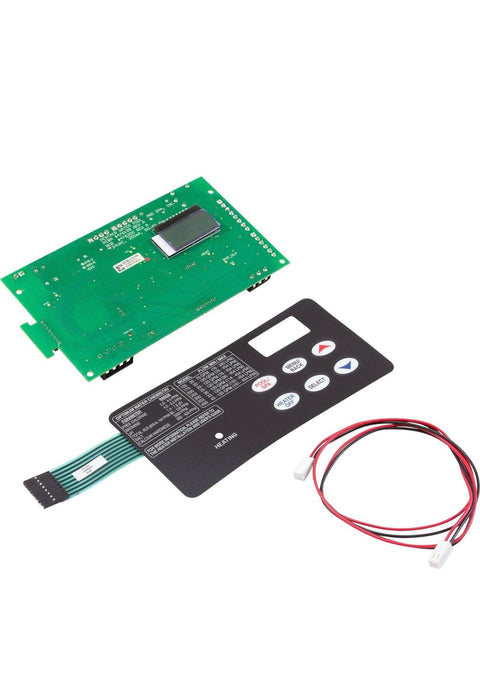

The Pentair 461105Z Control PCBA and Membrane Pad Replacement Kit is a genuine OEM replacement control kit designed for compatible Pentair MasterTemp and Sta-Rite Max-E-Therm pool and spa heaters.

This updated 6-button version includes an RS-485-compatible heater control board and matching membrane keypad. It is designed for servicing newer connected heaters and for upgrading compatible older 5-button heater controls when the original PCBA requires replacement.

The kit restores the primary electronic temperature, operating, diagnostic, and automation communication functions of the heater without requiring replacement of the complete heater.

Key Features

Genuine Pentair OEM Kit
Factory replacement control components engineered specifically for MasterTemp and Max-E-Therm heaters.

Updated 6-Button Membrane Pad
Includes Pentair's newer six-button heater keypad used with the updated control platform.

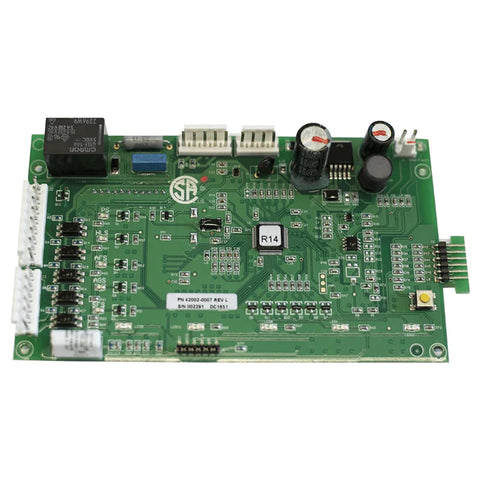

RS-485 Compatible Control Board
The included PCBA provides RS-485 communication capability for compatible Pentair automation systems.

Compatible With Older Heater Applications
When replacing the control board on applicable older 5-button heaters, this kit upgrades the control interface to the newer six-button configuration.

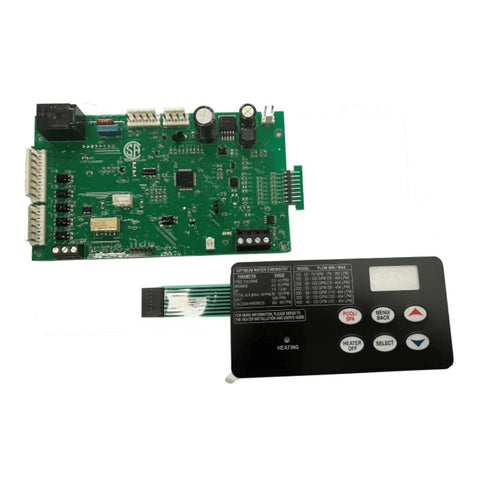

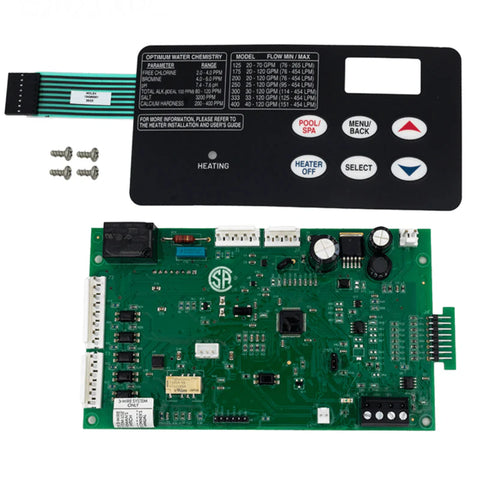

Complete PCBA & Membrane Package
Includes the matched control board and membrane pad required for the update.

Benefits

• Genuine Pentair OEM replacement components
• Restores heater electronic control operation
• Updated six-button user interface
• Adds RS-485 capability to compatible legacy heaters
• Supports compatible Pentair automation integration
• Restores temperature and operating controls
• Provides updated diagnostic functionality
• Allows control-system repair without replacing the complete heater

Specifications

Installation Information

Disconnect all electrical power to the heater before beginning installation. Gas supply should also be shut off when heater servicing requires access to gas or combustion components.

The existing control board and membrane pad are removed and replaced together with the updated components. Carefully document all wiring connections before removing the original PCBA.

The membrane-pad connector must be properly oriented when connected to the new control board. Wiring, connectors, grounding, ignition components, and related heater controls should also be inspected during service.

Installation should be performed by a qualified pool-heater service professional.

Confirm Before Ordering

Pentair 461105Z is the updated 6-button Control PCBA and Membrane Pad Kit for compatible:

• Pentair MasterTemp heaters
• Sta-Rite Max-E-Therm heaters
• Newer connected heater configurations
• Compatible older non-connected heaters requiring a PCBA update

Pentair transitioned MasterTemp and Max-E-Therm heaters to the connected six-button control platform beginning with heaters manufactured on May 7, 2021.

Older heaters manufactured before this change generally use a five-button membrane. When replacing the PCBA on a compatible older five-button heater, Pentair specifies updating the heater to the six-button membrane supplied with this kit.

Confirm the heater model, serial number, manufacturing date, and existing control configuration before ordering.

Warranty Information

The Pentair 461105Z is currently listed with a 60-day general parts warranty. Warranty eligibility and coverage may depend on purchase channel, installation, proof of purchase, and current Pentair warranty requirements.

Customer Q&A

Q: Is 461105Z the newer six-button version?
Yes. This kit includes the updated six-button membrane keypad and compatible RS-485 control PCBA.

Q: What is included in the kit?
The kit includes the control PCBA, six-button membrane pad, and installation instructions.

Q: Can this replace the control board on an older five-button heater?
Yes, on compatible MasterTemp and Max-E-Therm heaters. Pentair specifies upgrading the membrane to the six-button version when installing the newer control board.

Q: Does this kit support RS-485 communication?
Yes. The included PCBA is designed with RS-485 communication capability for compatible automation applications.

Q: Is this the ignition control module?
No. The PCBA/control board and ignition control module are separate heater components.
