Product Overview

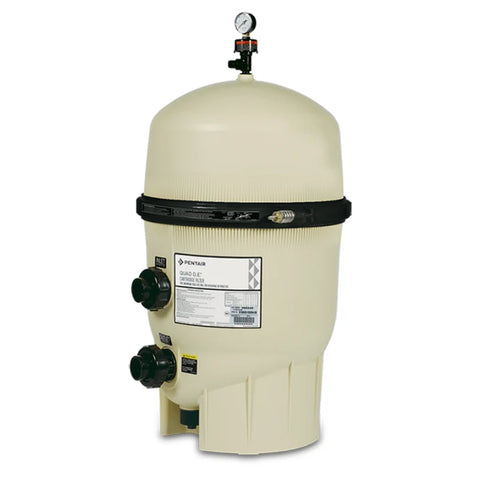

The Pentair Quad D.E. 60 Sq. Ft. Filter | 188592 is designed for high-performance in-ground pool and spa filtration, combining the fine particle capture of diatomaceous earth with a cartridge-style internal design.

With 60 square feet of effective filtration area, the Quad D.E. 60 provides strong dirt-holding capacity and efficient water circulation for residential pool systems. Instead of using traditional vertical D.E. grids, the Quad D.E. series uses four cartridge-style elements that are coated with D.E. powder to create a highly effective filtration surface.

This design offers the clarity associated with D.E. filtration while providing a service-friendly internal configuration for cleaning and inspection.

Key Features

Genuine Pentair Quad D.E. filter

60 sq. ft. effective filtration area

Designed for in-ground pools and spas

Four cartridge-style internal filter elements

Uses diatomaceous earth filtration media

Excellent fine-particle filtration

High dirt-holding capacity

Durable corrosion-resistant tank construction

Compatible with properly sized variable-speed pump systems

Easy-access internal components for maintenance

Pentair part number 188592

Benefits

Advanced D.E. Filtration: The Pentair Quad D.E. 60 is designed to provide excellent water clarity by using D.E. powder as the filtration media.

During operation, D.E. coats the internal cartridge-style elements and captures small suspended particles as pool water passes through the filter. This helps remove fine debris that may pass through coarser filtration systems.

The 60 sq. ft. filtration area makes this model a strong option for many residential pools and pool-and-spa combinations.

Cartridge-Style Internal Design: Unlike conventional D.E. filters that rely on traditional grid assemblies, the Quad D.E. system uses four removable cartridge-style elements.

This design provides:

• Large filtration surface area
• High dirt-holding capacity
• Easy inspection of individual elements
• Straightforward cleaning
• Efficient water distribution through the filter

The elements should be inspected regularly for tears, cracking, or other damage that could affect filtration performance.

Specifications

Warranty & Compatibility

Maintenance

Proper maintenance is important for consistent filtration and safe operation.

When servicing the filter:

• Turn off the circulation pump
• Relieve all internal pressure
• Open the filter only after confirming pressure is fully released
• Remove and thoroughly clean the internal elements
• Inspect the tank O-ring and clamp assembly
• Reassemble according to Pentair instructions
• Recharge with the correct amount of D.E. media

Never operate a D.E. filter without the proper amount of filtration media.

Important Safety Notice

Pool filters operate under significant internal pressure. Always shut off the pump and completely relieve pressure before opening or servicing the filter.

Never loosen the filter clamp while the system is pressurized.

Professional installation is recommended to ensure proper plumbing, hydraulic sizing, and safe operation.

Customer-Facing Q&A

Q: What is Pentair part number 188592?
A: Pentair 188592 is the Quad D.E. 60 Sq. Ft. cartridge-style diatomaceous earth filter.

Q: Is this filter designed for in-ground pools?
A: Yes. It is designed primarily for residential in-ground pool and spa filtration systems.

Q: Does it use traditional D.E. grids?
A: No. The Quad D.E. series uses four cartridge-style internal elements coated with D.E. media.

Q: Can it be used with a variable-speed pump?
A: Yes, when the pump and plumbing system are properly sized for the filter and overall pool circulation requirements.

Q: Is a backwash valve included?
A: Valve configuration can vary by installation. Verify whether a separate backwash or multiport valve is required for your specific plumbing setup before ordering.
