Product Overview

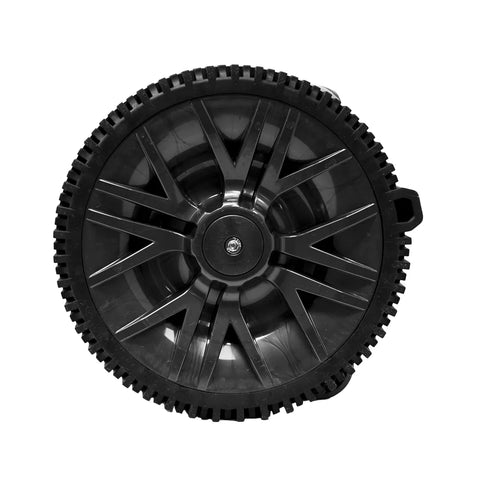

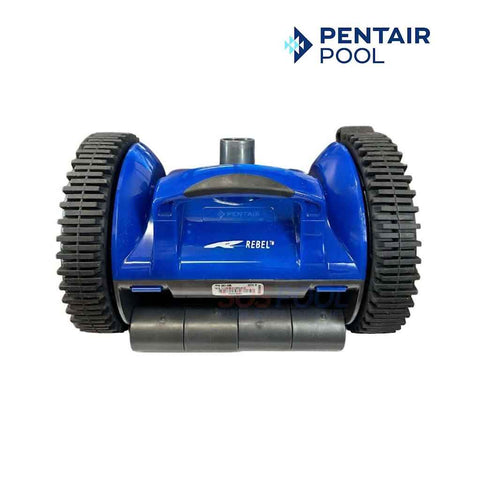

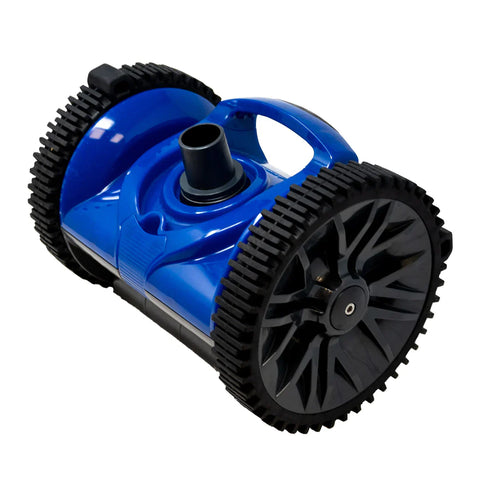

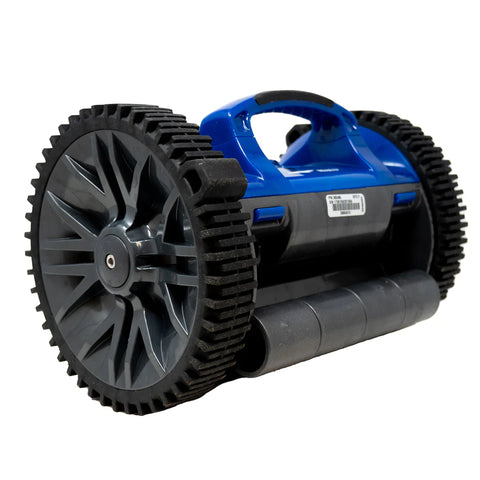

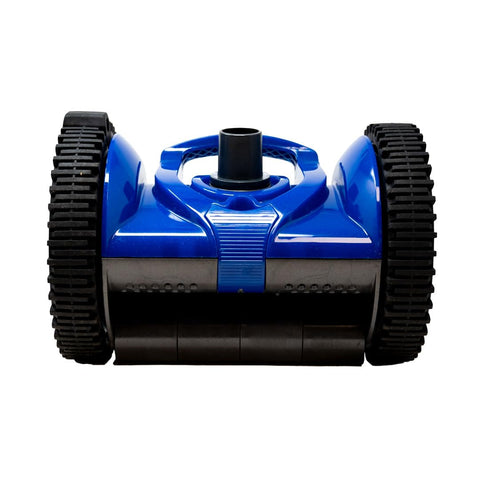

The Pentair Rebel V2 Cleaner Head 360486 is a genuine OEM replacement suction-side cleaner head designed for residential inground swimming pools. This head-only option is ideal when the existing Rebel cleaner hoses and installation accessories remain usable, but the cleaner body, wheels, turbine, steering components, or internal drive system have become worn or damaged.

The Rebel V2 uses the pool’s existing filtration pump and suction line to move across the pool while collecting dirt and debris. No electrical connection or separate booster pump is required. Its compact two-wheel design, programmed steering system, and efficient hydraulic operation help provide thorough cleaning coverage across compatible pool surfaces.

This listing includes the assembled cleaner head only. Hoses, regulator valve, flow gauge, hose float, compression adapter, vacuum-line fitting, and other installation accessories are not included.

Key Features

• Genuine Pentair OEM cleaner head
• Replacement for the Rebel V2 suction-side cleaner
• Head only with no hoses or accessory package
• Designed for residential inground swimming pools
• Two-wheel design provides dependable maneuverability
• SmartTrac programmed steering improves pool coverage
• Sure-Flow turbine allows dirt and debris to pass through
• Dual-action roller skirt maintains suction over obstacles
• Quick-release latch provides convenient internal access
• Efficient hydraulic design works with variable-speed pumps
• Operates through the pool’s existing suction system
• No booster pump or electrical connection required

Benefits

• Restores cleaner performance without purchasing a complete kit
• Allows existing compatible hoses and accessories to be reused
• Helps collect both fine dirt and larger debris
• Maneuvers through tight areas and around pool obstacles
• Reduces clogging through an open turbine design
• Works efficiently at properly adjusted lower pump speeds
• Provides a cost-effective alternative to rebuilding multiple worn components
• Arrives assembled for easier connection to an existing hose system

Specifications

Compatible Pool Surfaces

The Rebel V2 cleaner head is designed to operate on many common inground pool surfaces, including:

• Gunite
• Plaster
• Vinyl liner
• Fiberglass
• Tile

Cleaner performance may vary based on pool shape, surface condition, plumbing design, available suction, and hose configuration.

What Is Included

• One Pentair Rebel V2 assembled cleaner head

Not Included

• Standard cleaner hoses
• Leader hose
• Regulator valve
• Flow gauge
• Hose float
• Threaded compression adapter
• Vacuum-line wall fitting
• Eyeball diverters
• Hose protector
• Leaf canister

Installation Information

Connect the existing compatible leader hose to the cleaner’s swivel connection. Submerge the cleaner and hose completely to remove trapped air before connecting the system to the skimmer or dedicated suction line.

The cleaner requires properly adjusted water flow. Excessive suction may cause rapid movement or unnecessary wear, while insufficient suction may prevent proper travel and debris pickup. Use the appropriate regulator valve and flow gauge from the existing installation to confirm correct operation.

Remove swimmers from the pool before operating the cleaner. Never allow anyone to play with the cleaner or hose while the filtration pump is running.

Confirm Before Ordering

Please verify:

• Your required part number is 360486
• You need the Rebel V2 cleaner head only
• Your existing hoses and accessories are still serviceable
• The cleaner will be used in an inground pool
• Your suction system can provide proper operating flow
• You understand that no hoses or installation accessories are included

Warranty Information

This cleaner head is covered by Pentair’s applicable limited replacement-part warranty. Warranty terms may differ from those provided with a complete cleaner package. Coverage is subject to proper installation, normal use, proof of purchase, and Pentair’s current warranty policy.

Customer Q&A

Q: Are hoses included with part 360486?
A: No. This listing includes the assembled Rebel V2 cleaner head only.

Q: Does it require a booster pump?
A: No. It operates from the pool’s existing suction system.

Q: Can I reuse my existing Rebel hoses?
A: Yes, provided the hoses and accessories are compatible and remain in good condition.

Q: Is this designed for above-ground pools?
A: No. The Rebel V2 is intended for residential inground pools.

Q: Does the cleaner arrive assembled?
A: Yes. The cleaner head arrives assembled and ready to connect to a compatible leader hose.
