Product Overview

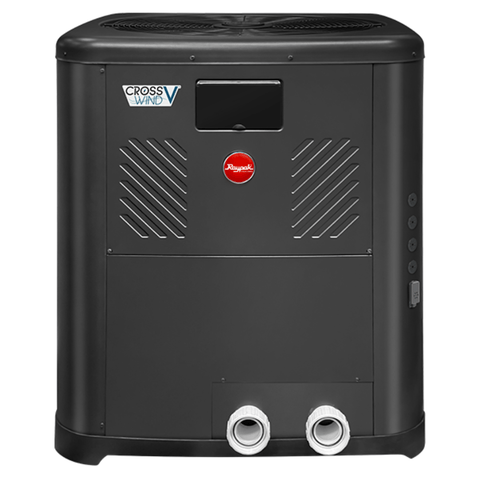

The Raypak Crosswind V Standard is an electric pool and spa heat pump that delivers 110,000 BTU/h of heating output at Rating A for residential pool and spa applications. It draws heat from outdoor air, so no gas supply is needed. A titanium heat exchanger and powder-coated metal cabinet provide construction suited to outdoor equipment pads, and built-in Raymote Wi-Fi allows remote control and status monitoring.
Ideal For
Residential pools and spas that need efficient electric heating without a gas line.
Pool and spa combinations where Spa and Timed Spa modes simplify planned spa use.
Homeowners who want to adjust and monitor water temperature remotely without a trip to the equipment pad.
Key Features
110,000 BTU/h heating output with 5.9 COP at Rating A; 118,000 BTU/h with 6.1 COP at Rating B.
Pool, Spa, and Timed Spa operating modes.
Titanium heat exchanger and powder-coated metal cabinet.
Built-in Raymote Wi-Fi for remote settings and status checks.

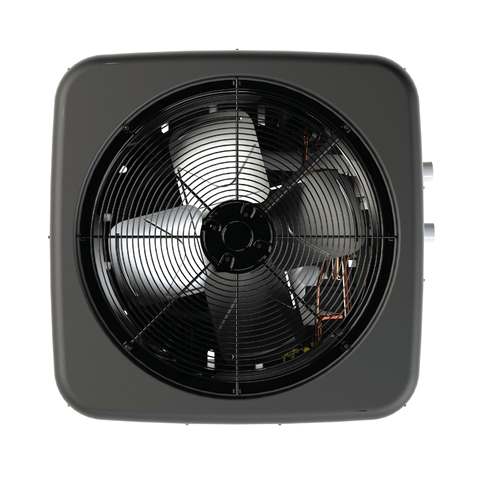

Vertical air discharge with front-accessible 2-inch PVC unions.
Benefits
Electric heat pump operation heats water without requiring a gas supply.
High COP performance provides efficient heating when air conditions are favorable.
The titanium heat exchanger supports durable service when water chemistry and flow are properly maintained.
Front-accessible connections and vertical discharge help keep equipment-pad access practical.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raypak |
| Series / Model | Crosswind V Standard / 6550 |
| Product Type | Pool and spa heat pump |
| SKU / Part Number | TWPH-6550EHT08 |
| Operating Function | Heating only |
| Heating Output / COP, Rating A | 110,000 BTU/h / 5.9 (80°F air, 63% RH, 80°F water) |
| Heating Output / COP, Rating B | 118,000 BTU/h / 6.1 (80°F air, 80% RH, 80°F water) |
| Operating Modes | Pool, Spa, Timed Spa |
| Heat Exchanger | Titanium |
| Electrical Supply | 208–230VAC, single phase, 60Hz |
| Listed Electrical Input | 5.4 kW |
| Circuit Breaker Size (Min / Max) | 60 A / 70 A |
| Water Connections | 2-inch PVC unions |
| Controls | Raymote Wi-Fi (2.4GHz) |
| Cabinet Dimensions (W × D × H) | Approximately 33.79 × 33.79 × 37.78 inches |
| Unit Weight | 282 lb |
| Shipping Dimensions (L × W × H) | 38.75 × 38.75 × 42.5 inches |
| Shipping Weight | 300 lb |
| UPC | 662021624582 |
What’s Included
- Raypak Crosswind V Standard heat pump.
- Two union halves.
- Tie-down hardware.
- Documentation.
Raypak lists seven years of parts coverage, two years of labor, and ten years of parts coverage on the titanium heat-exchanger tube. Confirm additional job-specific accessories before purchase.
Warranty & Compatibility
Compatibility
This unit requires 208–230VAC, single-phase, 60Hz electrical service with a 60 A minimum / 70 A maximum circuit breaker. Raymote requires reliable 2.4GHz Wi-Fi and internet access. Heat pump selection should account for pool size, climate, air temperature, humidity, and desired water temperature.
This EHT Standard model heats only; it does not cool pool water. An existing heater or heat pump with a similar BTU rating does not establish direct replacement compatibility; electrical service, plumbing, water flow, and clearances require separate review.
Installation Context
Installation should be handled by a qualified pool equipment professional who confirms sizing, electrical service, clearances, plumbing, and water flow. A bypass or changes to existing electrical or plumbing may be required. Warranty coverage is subject to Raypak purchase, installation, and warranty conditions.
Customer-Facing Q&A
Q: Is 110,000 BTU the heater’s output rating?
A: Yes. It is the heating output at Rating A (80°F air, 63% relative humidity, 80°F water). At Rating B (80°F air, 80% relative humidity, 80°F water) output is 118,000 BTU/h. Actual performance varies with air temperature, humidity, and water temperature.
Q: Can this unit cool my pool?
A: No. The EHT Standard model is heating only. For heating and cooling, the Crosswind V Deluxe heat/cool model is required.
Q: What do I need for the Wi-Fi control to work?
A: Raymote requires a reliable 2.4GHz Wi-Fi signal at the equipment pad and an active internet connection.
Q: Will it directly replace my existing heater or heat pump?
A: Compatibility requires checking electrical service, breaker sizing, plumbing, water flow, and clearances before installation.
