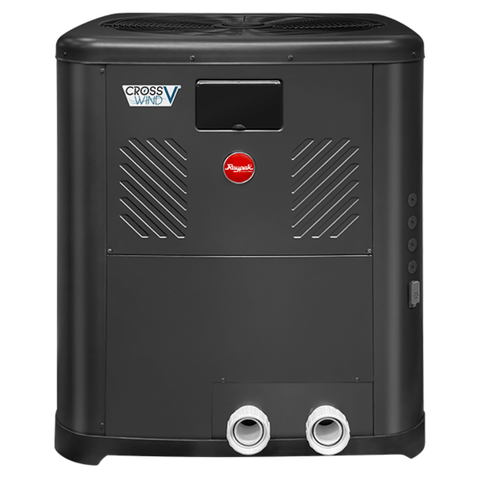

Keep your residential pool or spa at a more comfortable temperature with electric heat drawn from the surrounding air. The Raypak Crosswind V Standard delivers up to 80,000 BTU/h under its Rating A test conditions, without a natural gas or propane connection.

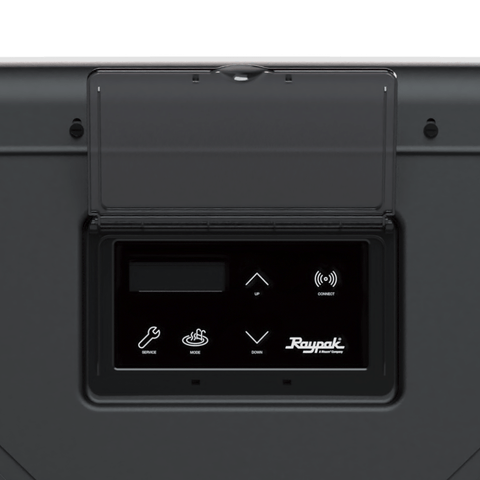

Use the digital controls to select Pool, Spa, or Timed Spa mode as the day’s plans change. Built-in Raymote Wi-Fi lets you adjust temperature and check heater status remotely over a suitable 2.4GHz Wi-Fi network with internet access.

• Two published performance ratings: Output is 80,000 BTU/h with a 5.5 COP at 80°F air, 63% relative humidity, and 80°F water; at 80°F air, 80% humidity, and 80°F water, it is 85,000 BTU/h with a 5.8 COP.

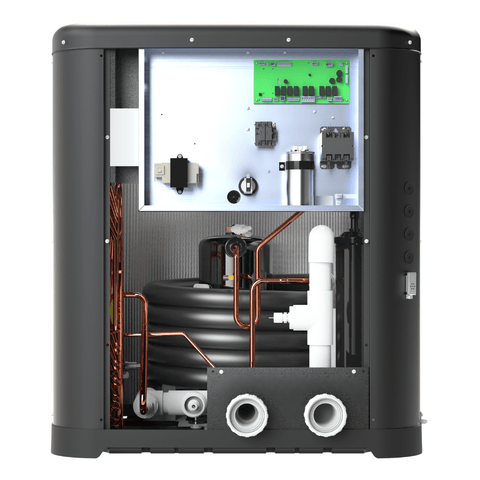

• Durable construction: A titanium heat exchanger and powder-coated metal cabinet form the core of this pool and spa heater.
• Accessible plumbing: Front-accessible 2-inch PVC union connections make it easier to reach the water connections during installation.
• Electrical requirements: Requires 208–230VAC, single-phase, 60Hz service; heating output varies with air temperature, humidity, and water temperature.
• Unit dimensions and weight: Approximately 33.79 W × 33.79 D × 37.78 H inches; unit weight is 260 lb.
• Included: Heat pump, two union halves, tie-down hardware, and documentation. Shipping dimensions are 38.75 L × 38.75 W × 42.5 H inches, and shipping weight is 278 lb.
• Warranty: Raypak lists seven years for parts and two years for labor, plus ten-year parts coverage on the titanium heat-exchanger tube, subject to its warranty terms.

This is a heating-only model, so it does not cool pool water. Have a qualified professional size and install it, with suitable airflow clearance and access for maintenance; the installer should check electrical sizing, bonding, water flow, and bypass needs.
