Product Overview

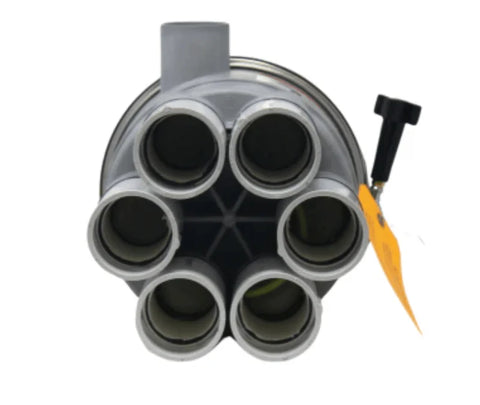

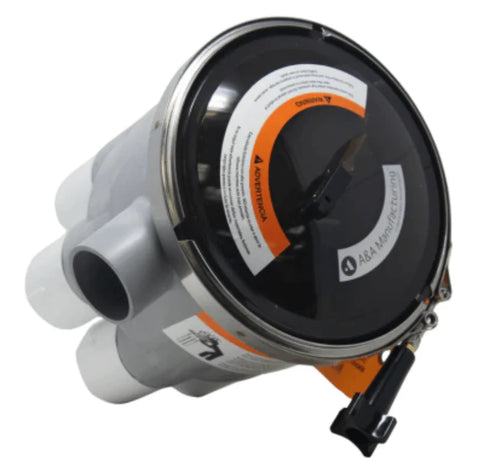

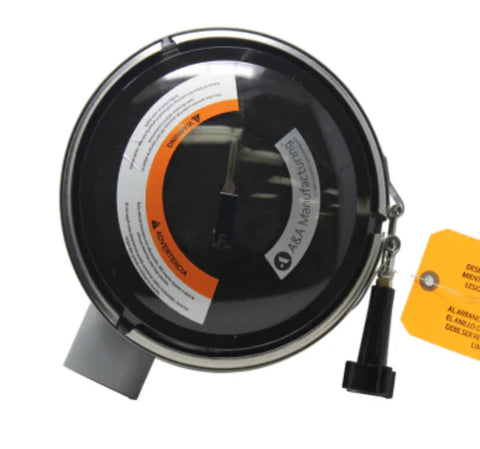

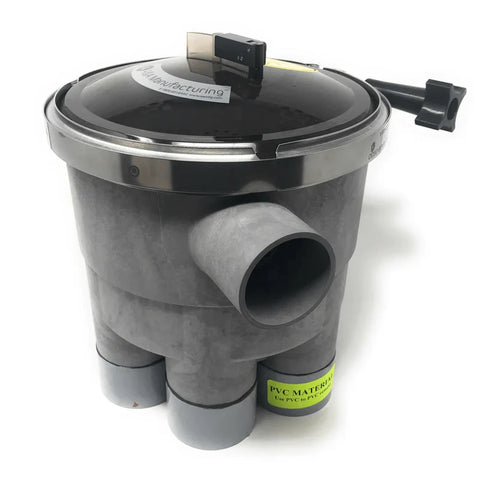

The Pentair 2" 6-Port Low Profile T-Valve | 224420 is a replacement water valve component designed for compatible in-floor pool cleaning systems. This low-profile T-valve helps direct water flow between multiple cleaning zones so in-floor cleaning heads can activate in sequence and support proper debris movement, floor circulation, and cleaning coverage.

This model features a 2" valve size and 6-port configuration, making it suitable for systems specifically designed to use this Pentair valve style. Because in-floor cleaning valves are system-specific, compatibility should always be confirmed by part number, port count, plumbing size, valve body style, and system design before ordering.

This is a replacement valve component only. It is not a complete in-floor cleaning system.

Ideal For

Compatible in-floor pool cleaning systems

Replacing a worn or damaged 6-port T-valve

Systems requiring a 2" valve size

Low-profile valve applications

Pool cleaning zones that are not cycling correctly

Restoring proper water distribution between cleaning zones

Pool professionals servicing in-floor cleaning systems

Compatible Pentair in-floor cleaning valve repairs

Key Features

Genuine Pentair in-floor cleaning valve component

Part number 224420

2" valve size

6-port configuration

Low-profile T-valve design

Helps direct water flow between cleaning zones

Supports proper in-floor cleaning head sequencing

Designed for compatible in-floor pool cleaning systems

Useful for valve repair and replacement applications

Important fitment part requiring exact compatibility

Professional installation recommended

Benefits

The Pentair 2" 6-Port Low Profile T-Valve helps restore proper zone control in compatible in-floor pool cleaning systems. By directing water flow between cleaning zones, the valve helps in-floor cleaning heads activate in the intended sequence and move debris more effectively across the pool floor.

Replacing a worn, cracked, damaged, or incorrectly operating valve can help improve cleaning coverage, restore head cycling, reduce uneven flow between zones, and bring the system closer to its intended performance.

For pools that rely on in-floor cleaning as the primary cleaning method, the correct valve is essential for consistent cleaning and circulation.

Specifications

What’s Included

• Pentair 2" 6-port low profile T-valve
• Valve body/components supplied by manufacturer packaging
• Manufacturer-supplied replacement part packaging

What’s Not Included

• Complete in-floor cleaning system
• Cleaning heads or nozzles
• Water valve module unless included by manufacturer packaging
• Valve lid or clamp unless included by manufacturer packaging
• Plumbing pipe or fittings
• PVC primer or cement
• O-rings, gaskets, or hardware unless supplied by manufacturer packaging
• Removal tools
• Installation labor
• Professional diagnostic service

Warranty & Compatibility

Compatibility Guidance

The Pentair 224420 2" 6-Port Low Profile T-Valve should be used only with compatible in-floor pool cleaning systems designed for this exact valve configuration.

Before ordering, confirm the following:

• You need Pentair part number 224420.
• Your existing system requires a 2" low profile T-valve.
• Your system uses a 6-port valve configuration.
• Your plumbing layout matches this valve style.
• Your valve body, lid, module, and related components are compatible.
• Your cleaning heads and plumbing zones are designed for this valve configuration.
• Your pool professional has confirmed whether the problem is the valve body, internal module, water pressure, clogged line, cleaning heads, or plumbing.

Do not order this valve by pipe size alone. In-floor cleaning valves are system-specific, and the correct port count, profile style, valve body, plumbing layout, and cleaning system design must be verified.

Confirm Before Ordering

Before purchasing, please verify:

• You need the Pentair 224420 replacement valve.
• Your existing valve is a 2" 6-port low profile T-valve.
• Your in-floor cleaning system is compatible with this valve style.
• Your valve issue has been properly diagnosed.
• Your cleaning heads, nozzles, filter pressure, and system flow have also been inspected.
• You understand this is a replacement valve component, not a complete cleaning system.
• You have confirmed whether additional O-rings, gaskets, lids, modules, or hardware are required.
• Professional installation will be completed if plumbing changes are required.

Recommended Use

Use the Pentair 224420 when your compatible in-floor cleaning system requires a 2" 6-port low profile T-valve replacement.

Common signs the valve or related components may need service include:

• Cleaning heads not cycling properly
• Some cleaning zones not activating
• Weak or uneven flow between zones
• Visible valve damage or leaks
• Poor cleaning coverage after pump/filter issues have been ruled out
• Valve body damage or worn internal components
• Water flow not distributing correctly through the system

If multiple heads are not popping up or system pressure is low, inspect pump flow, filter pressure, clogged lines, valve internals, and cleaning heads before replacing the valve.

Installation Notes

This valve should be installed by a qualified pool professional or experienced pool plumbing technician. Installation may involve plumbing disassembly, valve orientation, O-ring inspection, pressure testing, flow verification, and system startup testing.

Professional installation is recommended to ensure:

• Correct valve model selection
• Proper valve orientation
• Correct plumbing connection
• Proper seal or gasket installation
• Leak-free installation
• Proper internal module or lid compatibility
• Correct cleaning zone sequencing
• Adequate water pressure and flow
• Safe startup and troubleshooting after installation

Improper installation or incorrect part selection may cause leaks, poor cleaning performance, valve failure, zone sequencing issues, or plumbing damage.

Important Fitment Note

This item is a 2" 6-port low profile T-valve. It is not a universal pool valve and should not be used as a substitute for a different port count, plumbing size, valve body style, or system configuration.

If your existing system uses a different valve profile, number of ports, or plumbing size, a different replacement part may be required.

Customer-Facing Q&A

Q: What is the Pentair 224420 used for?
A: It is a 2" 6-port low profile T-valve used in compatible in-floor pool cleaning systems.

Q: Is this a complete in-floor cleaning system?
A: No. This is a replacement valve component only. It does not include cleaning heads, nozzles, plumbing, or a complete cleaning system.

Q: What does the T-valve do?
A: The valve helps direct water flow between cleaning zones so in-floor cleaning heads can activate in sequence.

Q: What size is this valve?
A: This model is a 2" valve.

Q: How many ports does this valve have?
A: This model has a 6-port configuration.

Q: Is this a low-profile valve?
A: Yes. This model is listed as a low profile T-valve.

Q: Will this fit every in-floor cleaning system?
A: No. Compatibility must be verified by part number, valve size, port count, valve body style, plumbing layout, and system design.

Q: Can I order this by pipe size only?
A: No. Pipe size alone is not enough. You must verify the valve style, port count, and system compatibility.
