Product Overview

The Jandy Pro Series 7305 Swing Check Valve is a heavy-duty, straight-through valve designed to prevent reverse water flow in swimming pool and spa plumbing systems. It fits both 2-inch and 2-1/2-inch plumbing, making it suitable for equipment-pad installations involving pumps, filters, heaters, chlorinators, spas, solar systems, and water features.

The valve uses a unique swing-and-spring design that opens fully during normal operation, allowing water to pass with minimal restriction and reduced pressure loss. When the circulation pump shuts off or water attempts to reverse direction, the internal flapper closes automatically to help prevent backflow.

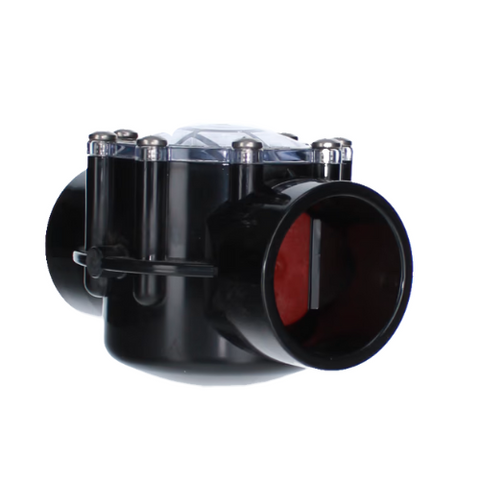

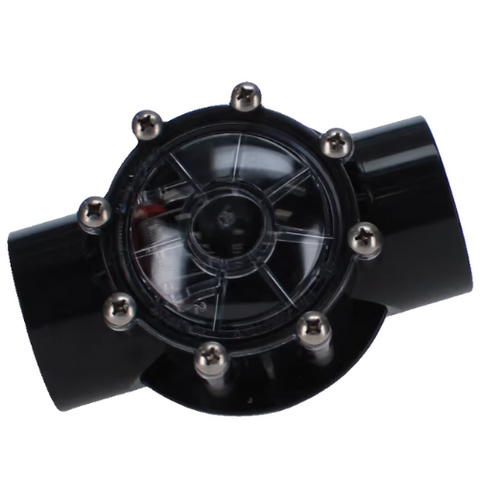

Constructed from durable CPVC, the Jandy 7305 provides excellent resistance to pool chemicals, heat, corrosion, and outdoor operating conditions. Its clear lid and red seal plate allow the internal flapper to be inspected without removing the valve from the plumbing. The valve can also be disassembled for cleaning when debris interferes with normal operation.

Key Features

• Genuine Jandy Pro Series check valve
• Straight-through 180-degree configuration
• Fits 2-inch and 2-1/2-inch plumbing
• Automatic backflow prevention
• Swing-and-spring internal design
• Fully opening flapper minimizes flow restriction
• Clear lid allows easy internal inspection
• Removable lid for cleaning and maintenance
• Durable CPVC valve body
• Corrosion-resistant stainless-steel spring
• Highly resistant to chlorine and pool chemicals
• Suitable for return-side and suction-side applications
• Designed for residential and commercial pool systems

Benefits

The Jandy 7305 helps protect pool equipment by preventing water from flowing backward when the circulation system shuts off. This is especially useful near chlorinators, heaters, raised spas, solar-heating systems, and water features where reverse flow may cause equipment damage, unwanted draining, or chemical migration.

Its large internal opening allows the flapper to swing completely out of the normal flow path, helping maintain efficient circulation with minimal turbulence and back pressure. The clear lid makes routine inspections faster because the flapper and seal can be checked without opening the valve.

When service is required, the internal assembly can be removed to clear debris or replace worn components without cutting the complete valve body from the plumbing.

Specifications

Plumbing Connections

The valve ports accept 2-inch PVC pipe inside the socket. For 2-1/2-inch plumbing, the outside of the valve port is connected using a compatible 2-1/2-inch coupling or fitting.

This dual-size design allows the same valve to be used in multiple equipment-pad configurations without separate reducers.

Installation Information

Turn off all pool equipment and relieve system pressure before installation. Confirm the required direction of water flow and install the valve with the directional arrow aligned correctly.

Remove the internal lid, spring, and flapper assembly before applying primer or cement. This helps prevent solvent cement from damaging or bonding the internal components. Do not allow excess glue to enter the valve body.

Allow all plumbing connections to cure according to the cement manufacturer’s instructions before pressurizing the system. Installation by a qualified pool professional is recommended.

Confirm Before Ordering

Please verify:

• Your plumbing is 2 inches or 2-1/2 inches.
• You need a straight-through check valve.
• The installation requires automatic one-way flow control.
• Adequate space is available to remove the clear lid.
• The valve’s flow arrow can be positioned in the correct direction.
• Your application does not require the Jandy 90-degree check-valve model.

Warranty Information

The Jandy 7305 is covered by the applicable manufacturer’s limited warranty against qualifying defects in materials and workmanship. Coverage does not include damage caused by incorrect flow direction, improper gluing, excessive pressure, freezing, chemical abuse, debris, or improper installation.

⚠️ Important Purchase Notice: This product is intended to be purchased and installed by pool professionals. Product support is not provided to homeowners. Returns are not accepted on this or any pool equipment after installation. Shipping damage must be reported promptly. By purchasing this product, you agree to these terms.

Customer Q&A

Does this valve fit both 2-inch and 2-1/2-inch plumbing?
Yes. Two-inch pipe fits inside the ports, while 2-1/2-inch fittings connect over the outside of the ports.

Can the valve be inspected without cutting the plumbing?
Yes. The clear removable lid provides access to the internal flapper and spring.

Can this valve be used near a chlorinator?
Yes. It is commonly installed to help prevent concentrated chlorinated water from flowing backward toward heaters and other equipment.

Does it require manual operation?
No. The internal flapper opens and closes automatically according to water-flow direction.
