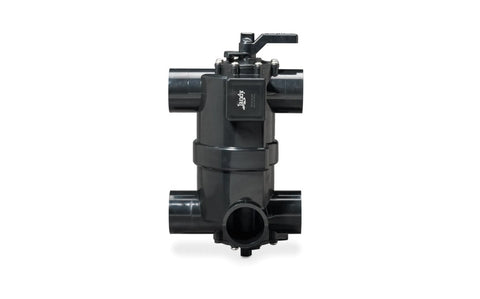

Handle regular filtration and backwashing with one valve assembly made for Jandy SFSM side-mount sand filters. Its Never Lube diverter removes routine lubrication from valve care, while full-flow passages support water movement through the system.

Use this packout when installing an SFSM filter or replacing a compatible valve assembly. It fits SFSM60, SFSM100, SFSM120 and SFSM140 filters, giving you the matching filter-side connection layout.

• SFSM fit: The filter ports have 7½-inch center-to-center spacing to match the SFSM connection layout.
• Plumbing connections: Ports accommodate 2-inch inside or 2½-inch outside connections for compatible plumbing.
• CPVC body: The polymer valve body provides a durable component for your pool equipment setup.

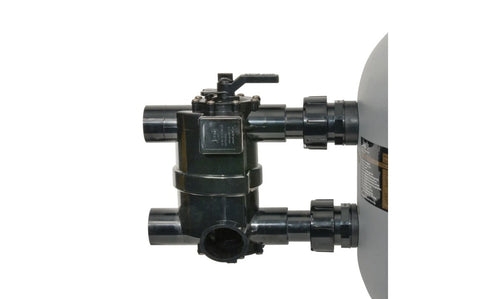

• Serviceable unions: Pre-installed filter-side unions make the valve connections removable for future servicing.
• Packout contents: Includes one backwash valve with filter-side unions; the filter, filtration media and additional piping are separate.
• Package size: The valve weighs 9.3 lb, and shipping dimensions are 17.13 × 9.31 × 13.25 inches.

Before ordering, compare your filter model, union connections and existing pipe locations. DEV, JS and DEL installations require their appropriate valve configurations, and replacing a different valve style may involve plumbing changes.

Jandy requires installation and service by a qualified pool professional, licensed where required. Have your installer check valve orientation, handle access and waste-line routing; stop the pump before changing valve positions and follow Jandy’s pressure-relief instructions.
