Product Overview

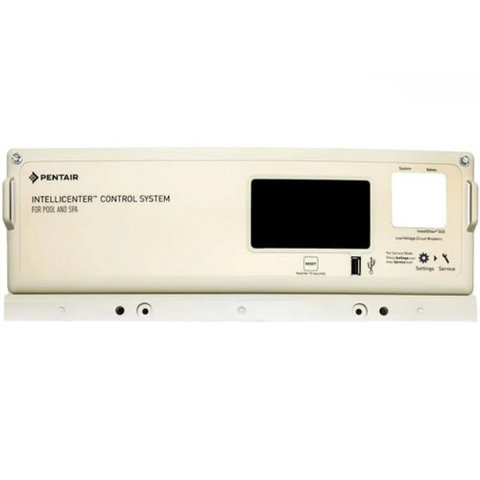

The Pentair 523050 IntelliCenter i5P Replacement Circuit Board is a genuine OEM replacement outdoor control panel motherboard designed for compatible Pentair IntelliCenter i5P single-body automation systems.

Supplied with the control-panel faceplate, this replacement board installs in compatible IntelliCenter Common Load Centers and Common Power Centers. It restores the primary processing and equipment-control functions of an existing i5P automation system when the original circuit board has failed or become damaged.

Key Features

Genuine Pentair OEM Replacement: Factory replacement circuit board designed specifically for compatible IntelliCenter automation systems.

i5P Single-Body Configuration: Designed for the IntelliCenter i5P platform used for single-body pool automation applications.

Faceplate Included: Supplied as a replacement outdoor control panel circuit board with the corresponding faceplate.

Common Load Center Compatibility: Designed for installation in compatible IntelliCenter Common Load Center and Common Power Center configurations.

Central Automation Control: Provides the core processing and communication functions required for compatible pumps, heaters, lighting, sanitization equipment, relays, sensors, and other IntelliCenter-connected equipment.

Benefits

Genuine Pentair OEM automation component

Restores IntelliCenter i5P system operation

Replacement motherboard and faceplate in one assembly

Designed for single-body automation applications

Works with compatible IntelliCenter expansion and personality cards

Retains the existing compatible load center and equipment wiring

Allows circuit-board replacement without replacing the complete automation system

Designed for direct integration with the IntelliCenter platform

Specifications

Warranty & Compatibility

Installation Information

Installation requires access to the IntelliCenter outdoor control panel. Disconnect all electrical power to the automation system before removing or servicing the circuit board.

Before removing the existing motherboard, identify and document all wiring, communication connections, relays, sensors, and expansion-card connections. Inspect wiring harnesses and connectors for corrosion, overheating, or damage before installing the replacement board.

Installation by a qualified pool automation professional is recommended.

Confirm Before Ordering

Pentair part 523050 is specifically identified as:

• IntelliCenter i5P replacement circuit board
• Single-body i5P application
• Outdoor Control Panel circuit board
• Faceplate included
• For Common Load Center / Common Power Center installations

Do not confuse this board with 523051, which is the IntelliCenter i5X expansion replacement circuit board.

Also verify whether your existing system uses additional personality or expansion cards. These cards are separate components and are not automatically included with the 523050 replacement board.

Warranty Information

The Pentair 523050 carries a 1-year general warranty. Warranty eligibility and coverage may depend on professional installation, purchase channel, proof of purchase, application, and current Pentair warranty requirements.

Customer-Facing Q&A

Q: Is the Pentair 523050 a genuine OEM replacement board?
A: Yes. It is a genuine Pentair IntelliCenter replacement outdoor control panel circuit board.

Q: Does the 523050 include the faceplate?
A: Yes. Pentair specifies this replacement circuit board as supplied with the faceplate.

Q: Is this for an i5P single-body system?
A: Yes. The 523050 is the replacement main circuit board for compatible IntelliCenter i5P systems.

Q: Does this include a complete IntelliCenter automation system?
A: No. This listing is for the replacement circuit board and faceplate. The load center, relays, transformer, personality cards, wireless components, sensors, and other automation hardware are not included unless specifically stated.

Q: What is the difference between 523050 and 523051?
A: The 523050 is the i5P replacement outdoor control panel circuit board. The 523051 is the i5X expansion replacement circuit board.
