Product Overview

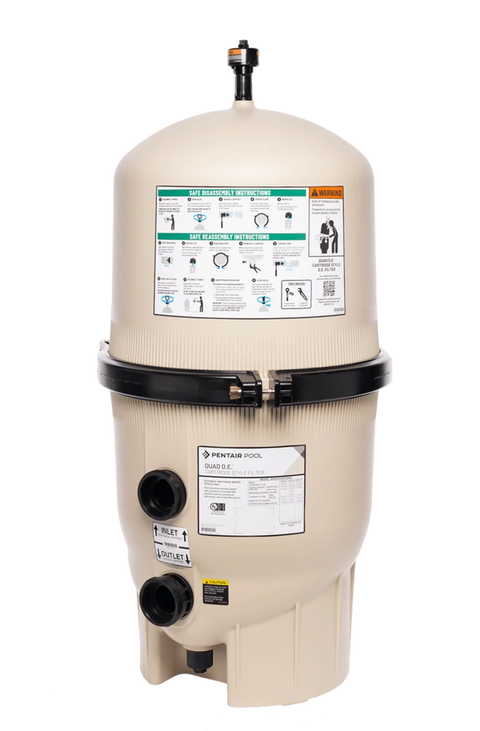

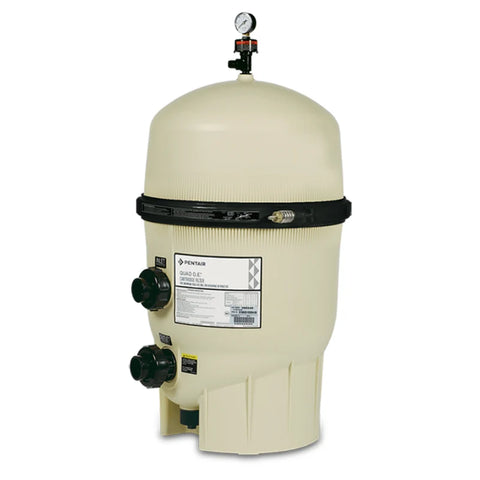

The Pentair Quad D.E. 80 Sq. Ft. Pool Filter | 188593 delivers high-performance filtration for in-ground swimming pools and spas by combining the fine filtration capability of diatomaceous earth with a cartridge-style internal design.
With 80 square feet of effective filtration area, a flow rating of up to 160 GPM, and an approximate 8 lb. D.E. media requirement, the Quad D.E. 80 is designed for larger residential pools and high-flow circulation systems that require dependable filtration and excellent water clarity.
Unlike traditional D.E. filters that use vertical grid assemblies, the Pentair Quad D.E. system uses four cartridge-style elements. These elements are coated with D.E. powder to create a fine filtration layer capable of capturing small particles and suspended debris from pool water.
This design provides strong dirt-holding capacity while making internal cleaning and inspection straightforward.
Key Features
-
Genuine Pentair Quad D.E. filter
-
80 sq. ft. effective filtration area
-
Maximum flow rate up to 160 GPM
-
Approximate 8 lb. D.E. capacity
-
Designed for in-ground pools and spas
-
Four cartridge-style internal filter elements
-
Fine D.E. filtration performance
-
High dirt-holding capacity
-
Durable corrosion-resistant tank
-
Suitable for variable-speed pump systems
-
Easy-access design for maintenance
-
Pentair part number 188593
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Pentair |
| Product Series | Quad D.E. |
| Part Number | 188593 |
| Filter Type | Diatomaceous Earth |
| Filtration Area | 80 Sq. Ft. |
| Maximum Flow Rate | 160 GPM |
| D.E. Requirement | Approx. 8 lbs. |
| Application | In-Ground Pool & Spa |
| Internal Design | Four Cartridge-Style Elements |
| Condition | New |
High-Capacity D.E. Filtration
The Quad D.E. 80 is designed for pool owners who want excellent filtration and clear water.
Diatomaceous earth coats the internal elements and forms a filtration layer that traps small contaminants as water passes through the filter. The larger 80 sq. ft. surface area provides increased dirt-holding capacity and can help extend the time between cleanings compared with smaller filters.
The filter is especially well suited for larger pools, pool-and-spa combinations, and equipment pads using modern variable-speed pumps.
Maintenance
The internal cartridge-style elements can be removed for thorough cleaning and inspection. After cleaning, the filter must be properly recharged with the recommended amount of D.E. media before normal operation.

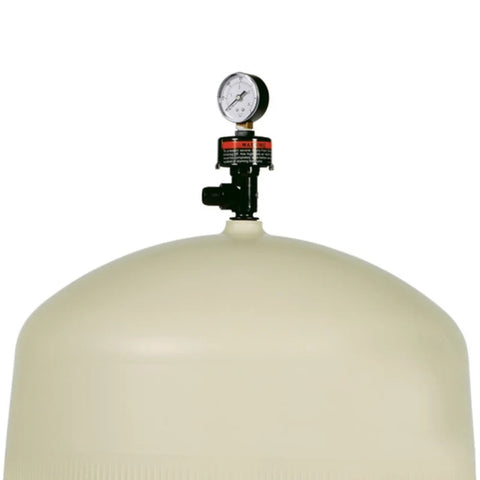

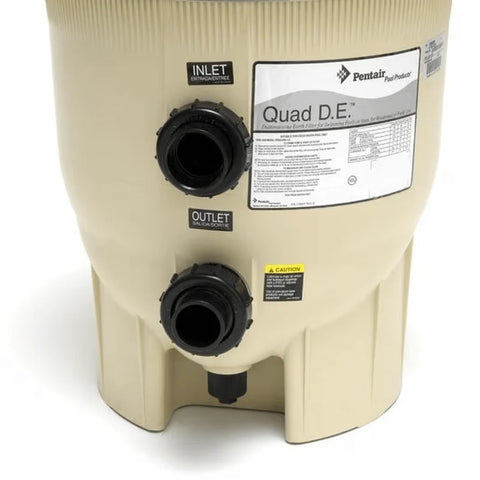

Regular maintenance should include inspecting the filter elements, tank O-ring, clamp assembly, air-relief system, and plumbing connections.
Frequently Asked Questions
How much D.E. does the Pentair 188593 require?
The Quad D.E. 80 requires approximately 8 pounds of D.E. filter media for a complete charge.
What is the maximum flow rate?
The filter is rated for flow up to approximately 160 GPM.
Is this filter for in-ground pools?
Yes. The Pentair Quad D.E. 80 is designed primarily for in-ground swimming pools and spas.
Does it use standard D.E. grids?
No. The Quad D.E. series uses four cartridge-style internal elements that are coated with D.E. media.
Can it be used with a variable-speed pump?
Yes. It can be paired with a properly sized variable-speed pool pump.
Important Safety Notice
Pool filters operate under pressure. Always turn off the pump and fully relieve internal pressure before opening or servicing the filter.
Never loosen the tank clamp while the filter is pressurized.
Professional installation is strongly recommended to ensure proper plumbing, hydraulic sizing, pressure relief, and safe operation.
