Product Overview

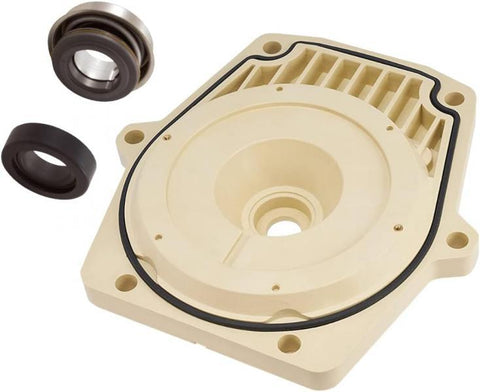

The Swimables SW-21-564 Seal Plate Kit is a complete aftermarket replacement solution designed for compatible Pentair WhisperFlo and IntelliFlo pool pumps. This convenient repair kit includes the seal plate, seal plate gasket, and mechanical shaft seal, allowing you to replace the primary components responsible for sealing the pump wet end to the motor assembly.

The SW-21-564 is designed as a replacement for Pentair / industry reference part number 074564. It is an excellent option for repairing pumps with water leakage between the pump housing and motor, replacing a cracked or worn seal plate, or completing a motor replacement or wet-end rebuild.

By replacing the seal plate, gasket, and shaft seal together, pool professionals and homeowners can help restore proper pump sealing and reduce the risk of water reaching the motor bearings.

Key Features

• Complete pool pump seal plate repair kit
• Designed for compatible Pentair WhisperFlo pumps
• Designed for compatible Pentair IntelliFlo pumps
• Replaces Pentair / industry reference 074564
• Includes seal plate
• Includes seal plate gasket
• Includes mechanical shaft seal
• Helps prevent water leakage between the pump and motor
• Ideal for pump repairs and motor replacements
• Convenient three-piece kit
• Durable aftermarket replacement
• Manufactured by Swimables

What's Included

• (1) Seal Plate
• (1) Seal Plate Gasket
• (1) Mechanical Shaft Seal

Product Specifications

Compatible Pump Families

The Swimables SW-21-564 is designed for use with compatible models within the following Pentair pump families:

• Pentair WhisperFlo
• Pentair WhisperFlo VST
• Pentair IntelliFlo Variable Speed
• Pentair IntelliFlo VSF
• Pentair IntelliFlo VS+SVRS

Compatibility Notice

Pentair has produced multiple generations and revisions of WhisperFlo and IntelliFlo pumps. Always confirm your pump model number, manufacturing date, existing seal plate, and replacement parts diagram before ordering.

Using replacement reference 074564 is one of the best ways to verify compatibility.

Why Replace the Seal Plate and Shaft Seal Together?

The mechanical shaft seal prevents pool water from traveling along the motor shaft and entering the motor assembly. Over time, the shaft seal can wear, crack, or begin leaking.

When the motor is removed from the pump, replacing the shaft seal is generally recommended rather than reinstalling an older seal.

The SW-21-564 kit allows you to replace the:

• Seal plate
• Seal plate gasket
• Mechanical shaft seal

at the same time, helping provide a complete and reliable pump repair.

Common Signs You May Need This Kit

The SW-21-564 may be needed if you notice:

• Water leaking between the pump housing and motor
• Water underneath the pump motor
• Cracks in the existing seal plate
• Warped or damaged seal plate
• Worn or flattened seal plate gasket
• Mineral deposits around the motor shaft
• Evidence of a leaking shaft seal
• Motor bearing corrosion caused by water intrusion
• Pump motor replacement requiring a new seal

Protect Your Pool Pump Motor

A leaking mechanical shaft seal can allow water to reach the motor shaft and bearings. If the leak is left unresolved, moisture can eventually cause bearing corrosion, excessive motor noise, and premature motor failure.

Replacing the shaft seal and inspecting the seal plate during pump service can help protect the replacement motor and extend the life of the pump.

Ideal for Pool Pump Repairs

The Swimables SW-21-564 is a practical replacement option for:

• Pool service professionals
• Pool equipment repair technicians
• Maintenance departments
• Property managers
• Commercial pool facilities
• DIY pool pump repairs
• Pump motor replacements
• Wet-end rebuilds

Installation Notes

Always disconnect electrical power to the pool pump before beginning service.

When replacing the seal plate and shaft seal, inspect the pump housing, diffuser, impeller, motor shaft, and mating surfaces for additional wear or damage.

Mechanical shaft seals contain precision sealing surfaces. Avoid touching the polished sealing faces whenever possible and keep the components clean during installation.

Professional installation is recommended for customers who are unfamiliar with servicing pool pump motors and wet-end components.

Frequently Asked Questions

What does Swimables SW-21-564 replace?

The SW-21-564 is designed as an aftermarket replacement corresponding to Pentair / industry reference 074564.

What comes with the SW-21-564 kit?

The kit includes the seal plate, seal plate gasket, and mechanical shaft seal.

Does this include the shaft seal?

Yes. A new mechanical shaft seal is included.

Does it include the seal plate gasket?

Yes. The required seal plate gasket is included with the kit.

Does SW-21-564 fit Pentair WhisperFlo pumps?

It is designed for compatible Pentair WhisperFlo pump models. Confirm your existing part number and pump model before ordering.

Does it fit Pentair IntelliFlo pumps?

It is designed for compatible IntelliFlo pump models, including several Variable Speed, VSF, and VS+SVRS configurations.

Is this a genuine Pentair part?

No. SW-21-564 is manufactured by Swimables and is an aftermarket replacement for compatible Pentair pump applications.

Why is my pool pump leaking between the motor and housing?

A worn mechanical shaft seal is one of the most common causes. A damaged gasket, seal plate, or other wet-end component may also cause leakage.

Should I replace the shaft seal when replacing the pump motor?

In most cases, yes. Installing a new shaft seal during motor replacement helps reduce the risk of leaks damaging the replacement motor.
