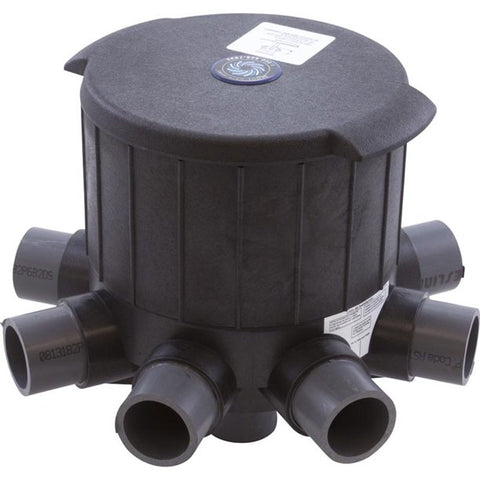

Ultraflex II Valve 8 Port Unit Molded Complete | 5-7-300

The Ultraflex II Valve 8 Port Unit Molded Complete (5-7-300) is a key component of an in-floor pool cleaning system, specifically the Caretaker UltraFlex2 system (which was also known as Ultraflex in its original version). Here's a breakdown of what this product entails:

Core Function:

This is an electronically controlled, 8-port water valve. Its primary function is to sequentially direct pressurized water to different sets of cleaning heads strategically placed on the pool floor, walls, and steps. This systematic distribution of water jets dislodges debris and pushes it towards the main drain, contributing to a cleaner pool with minimal manual effort.

Key Features:

• 8 Ports: The "8 Port" designation indicates that the valve has eight output lines, each connected to a zone of cleaning heads within the pool. This allows for comprehensive cleaning coverage, especially in larger or more complex pool designs.
• Molded Construction: The valve body is molded, likely from a durable and corrosion-resistant plastic material suitable for the pool environment.
• Electronic Control: This valve is electronically driven, allowing for automated and customizable cleaning cycles. It typically connects to a control panel that manages the timing and duration of water flow to each port.

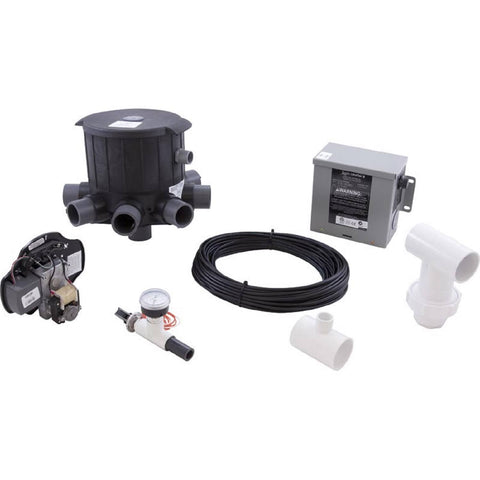

• Complete Unit: The "Complete" designation signifies that this product likely includes all the necessary components for installation and operation, such as:
  • The valve housing itself.
  • Internal gears and mechanisms for port switching.
  • A motor to drive the valve's rotation.

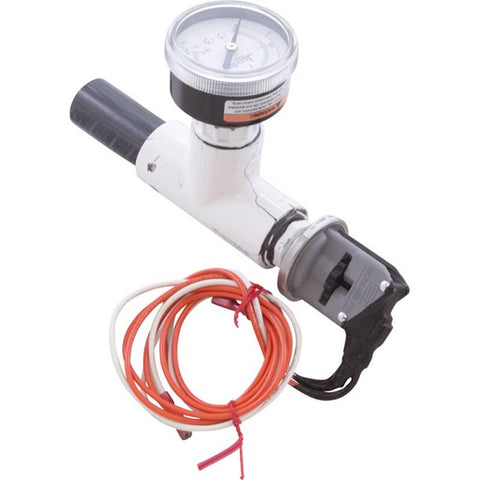

  • A pressure switch to monitor the system's pressure.
  • A fully mountable control panel for user interface and programming.
  • A power cable for electrical connection.
• High Efficiency: The UltraFlex2 system, of which this valve is a part, is often marketed as a high-efficiency cleaning solution, offering powerful cleaning with potentially less energy consumption compared to some alternatives.
• Customizable Run Times: The electronic control allows for adjusting the cleaning duration for each zone, providing flexibility based on the pool's specific needs.
• Superior Circulation: By actively pushing water throughout the pool, the system also contributes to better overall water circulation, aiding in chemical distribution and preventing stagnant areas.
• Perfect for Larger Pools: Due to its 8-port design, this valve is particularly well-suited for larger residential or even some commercial pools, ensuring thorough cleaning across a wider area.

In essence:

The Ultraflex II Valve 8 Port Unit Molded Complete (5-7-300) is the central component of a sophisticated in-floor pool cleaning system. It automates the process of debris removal by systematically directing water flow through strategically placed pop-up cleaning heads. Its 8-port design caters to larger pools, and the electronic control offers customizable and efficient cleaning operation
