Product Overview

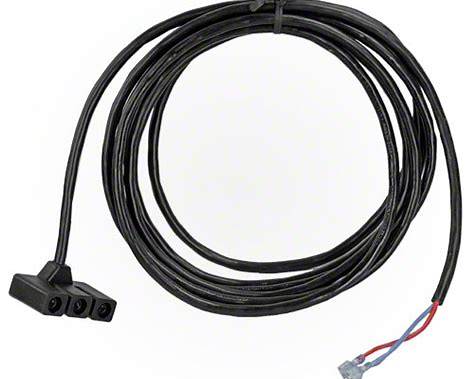

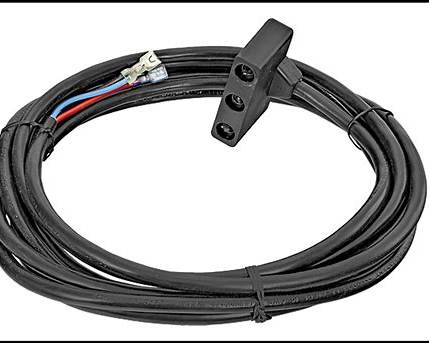

The Jandy R0402800 16' DC Power Cord is a genuine Jandy replacement electrical cable designed for compatible AquaPure® and PureLink™ 3-port salt chlorinator cells.

This is the cord assembly that connects directly to the electrical terminals on top of the Jandy electrolytic salt cell. The molded cell-side connector fits over the cell terminals, while the opposite end connects to the AquaPure/PureLink power or control center.

Jandy identifies R0402800 as the 16-foot DC cable for its 3-port electrolytic cell system. A 25-foot version is available separately as R0476300.

Key Features

• Genuine Jandy OEM replacement part
• Manufacturer Part Number: R0402800
• 16-foot DC power cord
• Designed for Jandy 3-port electrolytic salt cells
• Compatible with AquaPure® / PureLink™ systems using the applicable 3-port cell
• Molded cell connector attaches directly to the cell terminal studs
• Connects the salt cell to the system power/control center
• Direct replacement for a damaged, deteriorated or failed DC cell cable
• Suitable for equipment-pad replacement and service applications

Compatibility

Designed for compatible:

• Jandy AquaPure® 3-Port Cells
• Jandy PureLink™ systems using 3-Port Cells
• PLC700
• PLC1400
• Compatible Jandy 7-blade and 14-blade 3-port cell configurations

Jandy's replacement-parts documentation lists R0402800 specifically as the 16' DC cable used with its 3-port electrolytic cell assemblies.

Specifications

What Is Included?

Included:

• 1 × Jandy R0402800 16' DC power cord with cell-side connector

Not Included:

• Salt cell
• Flow / temperature / salinity sensor
• Cell unions
• O-rings
• Power center
• Control board

What Does R0402800 Do?

The R0402800 carries DC electrical power between the AquaPure/PureLink control system and the electrolytic salt cell.

The large molded connector at the cell end installs over the electrical terminals located on top of the 3-port cell. Jandy specifies that this connector must be fully seated onto the cell terminal studs during installation.

Replace the Cord If You Notice:

• Damaged or cracked cell connector
• Burned or overheated connector
• Corroded electrical contacts
• Damaged insulation
• Cut or deteriorated cable
• Loose connection at the salt cell
• Intermittent salt-cell operation caused by a damaged connection

Installation Information

Before servicing the salt chlorination system:

1. Turn off power to the pool equipment.
2. Turn off the circulation pump.
3. Disconnect the existing DC cord from the salt cell.
4. Disconnect the cord from the AquaPure/PureLink power center.
5. Route the replacement cable through the appropriate strain relief.
6. Connect the power-center side according to the manufacturer's wiring instructions.
7. Push the molded connector completely onto the salt-cell terminal studs.

Jandy specifically cautions that the DC cable connector should be fully inserted and bottomed out on the cell housing.

Related Jandy Parts

These components are identified together in Jandy's 3-port electrolytic cell replacement-parts diagram.

Frequently Asked Questions

Is R0402800 the connector that goes on top of the Jandy salt cell?

Yes. R0402800 is the 16-foot DC cable assembly whose molded connector installs onto the terminal studs on top of the compatible Jandy 3-port salt cell.

Does it fit a Jandy PLC1400?

Yes, the PLC1400 is part of Jandy's AquaPure 3-port cell family.

Does it fit a PLC700?

Yes, it is also used with compatible PLC700 3-port cell systems.

Is the salt cell included?

No. R0402800 is the power cord/connector assembly only.

Does it include the flow sensor cable?

No. The flow/temperature/salinity sensor is a separate component.

Is there a longer cord?

Yes. Jandy R0476300 is the corresponding 25-foot DC cable.

Is this the black rectangular connector shown on top of a Jandy salt cell?

Yes. This is the replacement assembly for the black molded electrical connector with the power cord attached on compatible Jandy 3-port cells.
