Product Overview

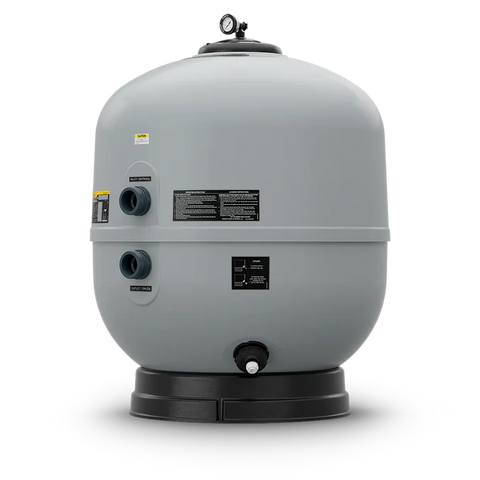

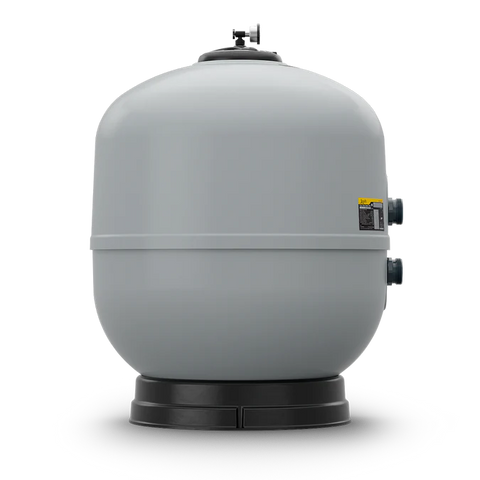

The Jandy SFSM140 Side-Mount Vertical Sand Filter provides high-capacity filtration for large residential pools and compatible commercial applications. Its durable laminated fiberglass-reinforced tank offers excellent resistance to outdoor conditions, operating pressure, and pool-water chemicals.
With a 7.06-square-foot filtration area and maximum flow rate of 141 GPM, the SFSM140 can support up to 50,760 gallons during a six-hour turnover cycle. The side-mounted plumbing configuration uses industry-standard connection spacing, making the filter suitable for new installations, equipment upgrades, and replacement of many existing side-mount sand filters.
The tank arrives with the internal lateral and diffuser assemblies installed, reducing on-site assembly requirements. A combination sand-and-water drain, clean/dirty pressure-gauge indicator, manual air-relief valve, and serviceable internal plumbing help simplify operation and routine maintenance.
Key Features
- Large 37.5-inch-diameter vertical filter tank
- 7.06-square-foot filtration area
- Maximum flow rate of 141 GPM
- Six-hour turnover capacity of 50,760 gallons
- Designed for residential or compatible commercial applications
- Laminated polyester and fiberglass-reinforced tank construction
- Side-mounted inlet and outlet ports
- 7.5-inch center-to-center port spacing
- Industry-standard plumbing configuration for easier replacements
- Easy-to-read clean/dirty pressure gauge
- Integrated manual air-relief valve
- Combination water-and-sand drain
- Modular internal plumbing for easier servicing
- Durable base designed with equipment-pad fastening locations
- Compatible with multiple Jandy backwash-valve options
- Genuine Jandy professional-grade equipment
Jandy designs the SFSM series for straightforward installation, replacement flexibility, and reduced maintenance.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Jandy |
| Product Series | SFSM |
| Product Type | Side-Mount Vertical Sand Filter |
| Model | SFSM140 |
| Application | Residential and Compatible Commercial Pools |
| Tank Diameter | 37.5 Inches |
| Overall Height | 49.7 Inches |
| Filtration Area | 7.06 Sq. Ft. |
| Maximum Flow Rate | 141 GPM |
| Minimum Backwash Flow | 105 GPM |
| Maximum Filtration Rate | 20 GPM per Sq. Ft. |
| Six-Hour Turnover Capacity | 50,760 Gallons |
| Maximum Working Pressure | 50 PSI |
| Normal Startup Pressure | 5–15 PSI |
| Port Spacing | 7.5 Inches Center to Center |
| Union Connection | Two 2" × 2½" Jandy Unions |
| Tank Construction | Laminated Polyester/Fiberglass Resin |
| Valve Location | Side Mount |
| Pressure Gauge | Included |
| Manual Air-Relief Valve | Included |
| Combination Sand/Water Drain | Included |
| Backwash Valve | Sold Separately |
| SKU | SFSM140 |
| Barcode / UPC | Manufacturer UPC Not Published |
The SFSM140 measures 49.7 inches high by 37.5 inches in diameter and is rated for a maximum working pressure of 50 PSI.
High-Capacity Filtration
The SFSM140’s large filtration area allows water to move evenly through the filter media, capturing dirt and debris while supporting high-flow pool systems. The filter is rated for up to 141 GPM, provided the plumbing, pump, backwash valve, and other equipment are properly sized.
Actual allowable system flow may be limited by:
- Pool plumbing size
- Pump performance
- Backwash-valve rating
- Heater flow requirements
- Sanitizer or automation components
- Local commercial-pool codes
- Maximum equipment-pad pressure
The filter should never be operated above its published maximum working pressure.
Durable Fiberglass-Reinforced Tank
The filter tank is constructed from laminated polyester and fiberglass resin for strength, longevity, and resistance to outdoor pool-pad conditions. Its robust molded base provides stable support and includes locations designed for anchoring the filter to the equipment pad where required.
The internal lateral and diffuser plumbing is modular, allowing components to be serviced or replaced without replacing the complete tank.
Easy Maintenance
The SFSM140 includes several service-friendly features:
- Clean/dirty indicator on the pressure gauge
- Manual air-relief valve
- Combination sand-and-water drain
- Accessible side-mounted plumbing
- Serviceable internal lateral and diffuser assemblies
- Compatible backwash-valve options
The clean/dirty pressure indication helps operators identify when backwashing is required, helping avoid unnecessary water use and maintaining efficient filtration.
Compatible Backwash Valves
The SFSM140 requires a compatible backwash valve. Jandy identifies the following options for the SFSM series:
| Valve Type | Jandy Part Number |
|---|---|
| Jandy 2-in-1 Backwash Valve | BWVL-NVL-75 |
| Jandy Slide Valve | BWVL-SLD-75 |
| Jandy Multiport Valve | BWVL-MPV-75 |
The backwash valve is normally sold separately unless specifically included in your Pool Supply Depot package.
Union Information
The filter connects using two Jandy 2" × 2½" unions.
Important: Jandy’s standard SFSM140 literature lists these unions as not included with the base filter. This listing should state that unions are included only when Pool Supply Depot is supplying them as part of this specific bundle.
Filter Media
The SFSM140 is designed for use with properly graded pool-filter sand or another NSF-approved filtration medium that is compatible with the filter.
The correct media quantity and freeboard level must be followed during installation. Do not overfill the tank, as improper media loading can restrict backwashing, increase system pressure, and reduce filtration performance.
Filter media is sold separately unless specifically stated otherwise.
Ideal For
- Large residential swimming pools
- High-flow pool circulation systems
- Compatible commercial pools
- Replacement of an existing large side-mount sand filter
- New equipment-pad installations
- Applications requiring up to 141 GPM of filter capacity
- Customers seeking durable, low-maintenance sand filtration
Included Components
- Jandy SFSM140 filter tank
- Factory-installed internal diffuser
- Factory-installed lateral assembly
- Pressure gauge with clean/dirty indicator
- Manual air-relief assembly
- Combination sand-and-water drain
- Filter base
- Two 2" × 2½" unions, only when included in the Pool Supply Depot bundle
The following are not included unless expressly stated:
- Backwash valve
- Filter media
- Pool pump
- Connecting plumbing
- Bonding or installation hardware
- Additional valves or automation equipment
Confirm Before Ordering
Verify the following before purchasing:
- Required model is SFSM140
- Equipment pad can accommodate a 37.5-inch-wide tank
- Adequate overhead and service clearance is available
- System flow will not exceed 141 GPM
- Pump can provide at least 105 GPM for proper backwashing
- Plumbing matches the required union configuration
- Correct Jandy backwash valve has been selected
- Filter-media type and required quantity have been confirmed
- Equipment pad can support the filled filter
- Local residential or commercial pool codes are satisfied
- Your specific package includes unions when advertised as “with unions”
Installation Information
Installation should be performed by a qualified pool professional. The filter must be installed on a stable, level equipment pad with adequate access for servicing, draining, media replacement, and backwashing.
The pump must be shut off and all pressure completely relieved before opening, servicing, or loosening any filter component. Never adjust the clamp, pressure gauge, air-relief assembly, plumbing, or drain while the system is pressurized.
Proper backwash flow is essential. The SFSM140 requires a minimum backwash flow of 105 GPM for effective cleaning of the filter bed.
Warranty Information
This genuine Jandy product is covered by the applicable Jandy/Fluidra manufacturer warranty when purchased through an authorized dealer and installed according to current manufacturer requirements.
Professional installation may be required for full warranty eligibility. Damage resulting from excessive pressure, incorrect plumbing, improper media, inadequate backwash flow, freezing, chemical damage, improper installation, or operating the filter outside Jandy’s published specifications may not be covered.
Frequently Asked Questions
What is the filtration area of the SFSM140?
The SFSM140 provides 7.06 square feet of filtration area.
What is its maximum flow rate?
The maximum published flow rate is 141 GPM.
What pool size can it support?
At the maximum rated flow, it can circulate approximately 50,760 gallons in six hours. Actual filter sizing must also account for plumbing, pump performance, local codes, and the desired turnover period.
What is the minimum flow required for backwashing?
Jandy specifies a minimum backwash flow of 105 GPM for the SFSM140.
Does it include a backwash valve?
No. A compatible backwash valve must be ordered separately unless it is included in a seller-created package.
Are unions included?
Jandy’s standard filter literature states that the unions are not included with the base SFSM140. This listing may advertise included unions only when Pool Supply Depot adds them to the package.
Does it include filter sand?
No. Filter media is normally sold separately.
Can alternative filter media be used?
The filter can use compatible NSF-approved filtration media when the media manufacturer’s instructions and Jandy’s required freeboard level are followed.
Is this filter suitable for commercial pools?
Jandy describes the residential SFSM series as suitable for residential or commercial use. Final commercial suitability depends on local health codes, required turnover rates, plumbing design, and project specifications.
